CN935E Network Card Settings and Configuration
CNET TECHNOLOGY, INC.
CN935E
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Available |
Network Transfer Rate | 10/20Mbps |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Data Bus | 32-bit PCI |

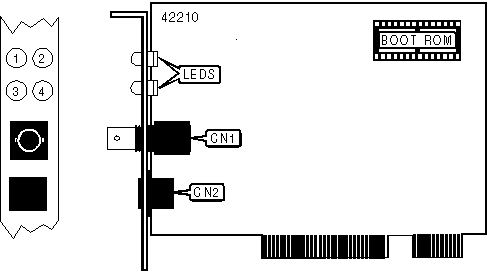

CONNECTIONS | |||
Function | Label | Function | Label |
RG-58A/U connector | CN1 | UTP via RJ-45 connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | Blinking | Data is being transmitted |
LED1 | Yellow | Off | Data is not being transmitted |
LED2 | Green | On | Network connection is good |
LED2 | Green | Off | Network connection is broken |
LED3 | Yellow | Blinking | Data is being received |
LED3 | Yellow | Off | Data is not being received |
LED4 | Red | Blinking | Collision detected on network |
LED4 | Red | Off | No collision detected on network |
