CDDI/FDDI EISA (DUAL ATTACHMENT OPTION) Network Card Settings and Configuration

CISCO SYSTEMS, INC.

CDDI/FDDI EISA (DUAL ATTACHMENT OPTION)

Card Type
Network Interface Card
NIC Type
CDDI/FDDI
Maximum Onboard Memory
Unidentified
Boot ROM
Unidentified
Network Transfer Rate
10Mbps
Topology
Star
Wiring Type
Unshielded twisted pair
Data Bus
32-bit EISA

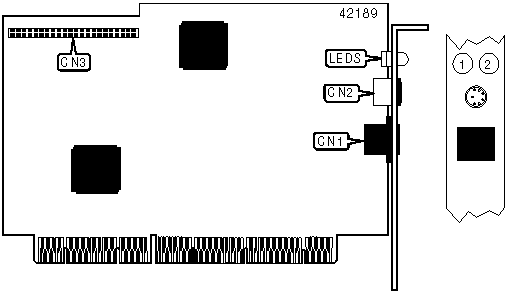

CONNECTIONS
Function
Label
Function
Label
UTP via RJ-45 connector
CN1
44-pin EISA interface
CN3
6-pin mini DIN connector
CN2

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Unidentified
On
Diagnostic check successful
LED1
Unidentified
Off
Diagnostic check failed
LED2
Unidentified
On
Network connection is good
LED2
Unidentified
Off
Network connection is broken
