STARLAN Network Card Settings and Configuration

NIC Type	Ethernet
Network Transfer Rate	1Mbps
Data Bus	8-bit ISA
Topology	Linear Bus/Star
Wire Type	Unshielded twisted pair (1Base-5)
Boot ROM	Not available

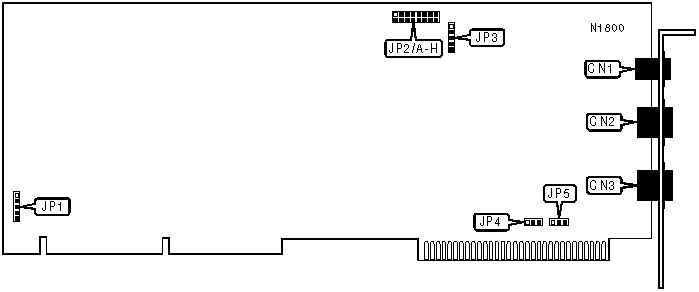

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair for telephone wiring	CN1	Standard unshielded twisted pair receive connector	CN3
Standard unshielded twisted pair transmit connector	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
	Base I/O address is 360h	JP1	Pins 1 & 2, 3 & 4 closed
	Base I/O address is 368h	JP1	Pins 2 & 3, 4 & 5 closed
»	Factory configured - do not alter	JP3	Pins 2 & 3, 4 & 5 closed

INTERRUPT
Setting	JP4	JP5
IRQ2	Open	Pins 2 & 3 closed
IRQ3	Open	Pins 1 & 2 closed
IRQ4	Pins 2 & 3 closed	Open
IRQ7	Pins 1 & 2 closed	Open

SHARED RAM ADDRESS
Setting	JP2/A	JP2/B	JP2/C	JP2/D	JP2/E	JP2/F	JP2/G	JP2/H
80000h	Closed	Open	Open	Open	Open	Open	Open	Open
90000h	Open	Closed	Open	Open	Open	Open	Open	Open
A0000h	Open	Open	Closed	Open	Open	Open	Open	Open
B0000h	Open	Open	Open	Closed	Open	Open	Open	Open
C0000h	Open	Open	Open	Open	Closed	Open	Open	Open
D0000h	Open	Open	Open	Open	Open	Closed	Open	Open
E0000h	Open	Open	Open	Open	Open	Open	Closed	Open
F0000h	Open	Open	Open	Open	Open	Open	Open	Closed
