AST ETHERNODE (202246-001) Network Card Settings and Configuration
AST RESEARCH, INC.

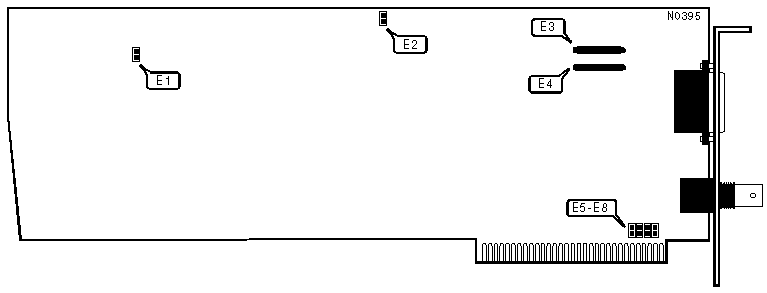

AST ETHERNODE (202246-001)
Transfer Rate | 10Mbps |
Data Bus | 8-bit ISA |
Topology | Linear bus |
Wiring Type | RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Not available |
SLEEP MODE | ||
Setting | E2 | |
» | Disabled | Closed |
| Enabled | Open |
Note: When sleep mode is enabled the card is disabled. The card cannot be accessed by the computer or the network. This option is provided to simplify trouble shooting system conflicts. | ||
CABLE TYPE | |||
Type | E3 | E4 | |
» | RG-58A/U 50ohm coaxial | Open | Closed |
| AUI transceiver via DB-15 port | Closed | Open |
Note:E3 and E4 are not jumpers, they are receptacles for a terminating resistor. In this case open means that the resistor is not installed while closed would mean that the resistor is installed. | |||
CARD ID | |||||
Setting | E5 | E6 | E7 | E8 | |
» | A | Closed | Open | Open | Open |
| B | Open | Closed | Open | Open |
| C | Open | Open | Closed | Open |
| D | Open | Open | Open | Closed |
Note: Up to four cards can be installed at once into the same system. If more than one card is installed in the | |||||
FACTORY CONFIGURED SETTINGS | |
Jumper | Setting |
E1 | Closed |
MISCELLANEOUS NOTES |
To completely configure this card, the software that comes with it must be used.. |
