ASANTE NETEXTENDER HUB AUI, AAUI Network Card Settings and Configuration
ASANTE TECHNOLOGY, INC.
ASANTE NETEXTENDER HUB AUI, AAUI
Card Type | Ethernet Transceiver |
Bus Type | AUI or AAUI |
Maximum Network Rate | 10Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair (4) |

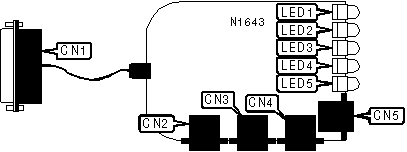

CONNECTIONS | |||
Function | Label | Function | Label |
AUI or AAUI connector | CN1 | UTP port 3 | CN4 |
UTP port 1 | CN2 | UTP port 4 | CN5 |
UTP port 2 | CN3 | ||
Note: Port 4 may be used to daisy-chain additional hubs. | |||
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Port 1 network connection is good |
LED1 | Off | Port 1 network connection is broken |
LED2 | On | Port 2 network connection is good |
LED2 | Off | Port 2 network connection is broken |
LED3 | On | Port 3 network connection is good |
LED3 | Off | Port 3 network connection is broken |
LED4 | On | Port 4 network connection is good |
LED4 | Off | Port 4 network connection is broken |
LED5 | On | Power is on |
LED5 | Off | Power is off |
