MACCON LC10TIII, MACCON-I LC-10T Network Card Settings and Configuration

Card Type	Ethernet
Chip Set	Unidentified
Data Bus	LC PDS
NPU Options	68882 (exact location unidentified)
Maximum Network Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

CONNECTIONS
Function	Label
Unshielded twisted pair	CN1

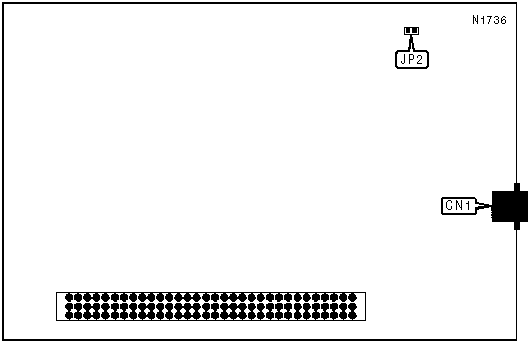

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Link integrity function enabled	JP2	Open
	Link integrity function disabled	JP2	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	Blinking	Traffic detected on network
LED1	Yellow	Off	Traffic not detected on network
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
Note: Exact location of LEDs is unidentified.
