MACCON+ 30I ETHERNET CARD Network Card Settings and Configuration
ASANTE TECHNOLOGIES, INC.
MACCON+ 30I ETHERNET CARD
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 32-bit SE30 PDS slot |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
Boot ROM | Not available |

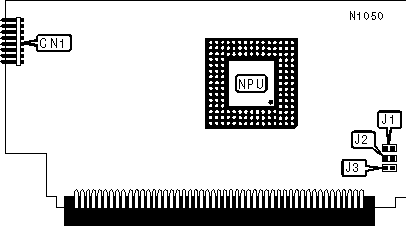

CONNECTIONS | |
Purpose | Function |
Connector card | CN1 |
NPU | Motorola 68882 |
SHARED RAM SIZE CONFIGURATION | |
Size | J2 |
16KB | Off |
64KB | On |
BOOT ROM TYPE | ||
Type | J1 | J3 |
16 pin | N/A | Closed |
28 pin 27128 | Open | Open |
28 pin 27256 | Closed | Open |

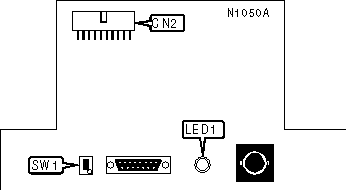

CONNECTIONS | |
Purpose | Location |
Controller card connector | CN2 |
CABLE TYPE SELECTION | |
Cable Type | SW1 |
RG-58A/U 50ohm coaxial | Off |
AUI Transceiver via DB-15 port | On |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Network activity detected |
LED1 | Off | Network activity not detected |

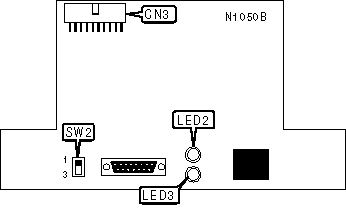

CONNECTIONS | |
Purpose | Function |
Controller card connector | CN3 |
CABLE TYPE SELECTION | |
Cable Type | SW2 |
Unshielded twisted pair, link enabled | position 1 |
Unshielded twisted pair, link disabled | position 2 |
AUI Transceiver via DB-15 port | position 3 |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED2 | On | Network activity detected |
LED2 | Off | Network activity not detected |
LED3 | On | Link status OK |
LED3 | Off | Link status broken |
