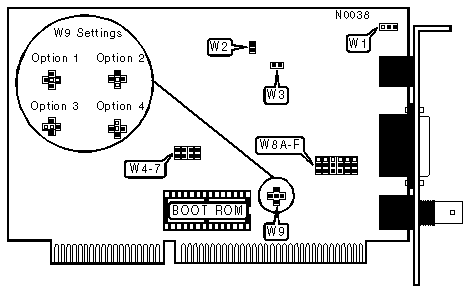

EtherPac 2001, EtherPac 2003 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

LINK INTEGRITY TEST
Setting	W1
Enabled	Pins 1 & 2 closed
Disabled	Pins 2 & 3 closed

CABLE TYPE
Type	W2	W3	W8A - W8F
RG-58A/U 50ohm coaxial	Open	Closed	Pins 2 & 3 closed
Unshielded twisted pair	Closed	Closed	Pins 2 & 3 closed
AUI transceiver via DB-15 port	Open	Open	Pins 1 & 2 closed

I/O CHANNEL READY(IOCHRDY) SIGNAL
Setting		W4
»	Normal	Open
	Fast	Closed

I/O BASE ADDRESS & BOOT ROM ADDRESS
I/O Address	Boot ROM Address	W5	W6
300h	C8000h	Closed	Closed
320h	CC000h	Open	Closed
340h	D0000h	Closed	Open
360h	D4000h	Open	Open

BOOT ROM
Setting		W7
»	Enabled	Closed
	Disabled	Open

INTERRUPT REQUEST
IRQ		W9
	2/9	Option 1
»	3	Option 2
	4	Option 3
	5	Option 4
