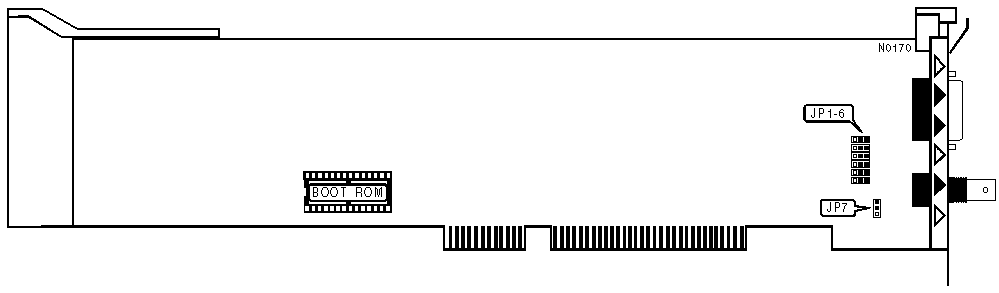

AE-2 MC Network Card Settings and Configuration
ARTISOFT, INC.
AE-2 MC
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit MCA |
Topology | Linear Bus |
Wiring Type | RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
CABLE TYPE | ||
Type | W1 - W6 | |
| » | RG-58A/U 50ohm coaxial | Pins 1 & 2 Closed |
AUI transceiver via DB-15 port | Pins 2 & 3 Closed | |
NETWORK SEGMENT LENGTH | ||
Length | W7 | |
| » | 185 Meters | Pins 2 & 3 Closed |
300 Meters | Pins 1 & 2 Closed | |
Note:If 300 meters is enabled, the network must consist of only one single segment. There can be no hubs or
| ||
