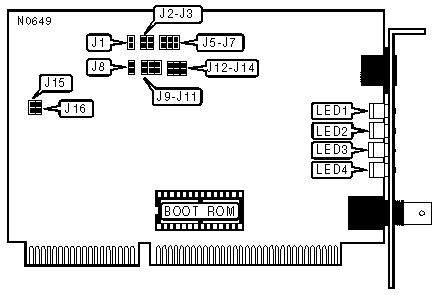

ETHERCOMBO-16 T/C (VERSION 2.0) Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star Linear bus
Wiring Type	Shielded/Unshielded twisted pair RG58A/U 50ohm coaxial
Boot ROM	Available

BOOT ROM
Setting		J7
»	Disabled	Open
	Enabled	Closed

BOOT ROM ADDRESS
Boot ROM Address		J5	J6
»	C800h	Open	Open
	CC00h	Closed	Open
	D000h	Open	Closed
	D400h	Closed	Closed

BUS WIDTH
Bus		J15
»	16-bit	Open
	8-bit	Closed

BUS COMPATIBILITY
CHRDY		J16
»	From Strobes (Motherboard uses VLSI chipset)	Open
	From BALE (Motherboard uses C & T chipset)	Closed

CABLE TYPE
Type		J2	J3
»	RG58A/U 50ohm coaxial	Closed	Open
	Unshielded twisted pair	Open	Open
	Unshielded twisted pair extended mode	Closed	Closed

CONFIGURATION SETTING
Configuration		J1
»	Via Software	Closed
	Via Hardware	Open

I/O BASE ADDRESS
Address		J9	J10	J11
»	300h - 31Fh	Open	Open	Open
	240h - 25Fh	Open	Closed	Open
	280h - 29Fh	Closed	Closed	Open
	2C0h - 2DFh	Open	Open	Closed
	320h - 33Fh	Closed	Open	Closed
	340h - 35Fh	Open	Closed	Closed
	360h - 37Fh	Closed	Closed	Closed

INTERRUPT REQUEST
IRQ		J12	J13	J14
»	3	Open	Open	Open
	2/9	Closed	Closed	Open
	4	Closed	Open	Open
	5	Open	Closed	Open
	10	Open	Open	Closed
	11	Closed	Open	Closed
	12	Open	Closed	Closed
	15	Closed	Closed	Closed

READ ACCESS SELECTION
Setting		J6
»	I/O port	Open
	Shared memory	Closed
Note:I/O port must be selected when using the Novell NE2000 driver. Shared memory must be used when using WD/SMC8013. Boot PROMS will not operate in the Shared Memory mode.

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Twisted pair network is valid
LED1	Green	Off	Twisted pair network connection is broken
LED2	Red	On	Data is being transmitted or received
LED2	Red	Off	Data is not being transmitted or received
LED3	Red	On	Collision detected on network
LED3	Red	Off	No collisions detected on network
LED4	Red	On	Twisted pair polarity reversed and corrected
LED4	Red	Off	Twisted pair polarity correct
