AT-MX20T Network Card Settings and Configuration

Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	External

CONNECTIONS
Function	Label	Function	Label

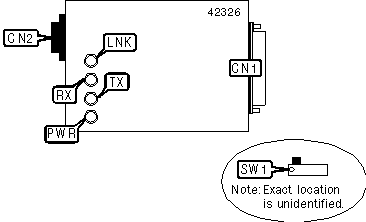

AUI transceiver via DB-15	CN1	RJ-45 UTP connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function disabled	SW1	Off
	SQE test function enabled	SW1	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Unidentified	On	Power is on
PWR	Unidentified	Off	Power is off
TX	Unidentified	On	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
RX	Unidentified	On	Data is being received
RX	Unidentified	Off	Data is not being received
LNK	Unidentified	On	Network connection is good
LNK	Unidentified	Off	Network connection is broken
