AT-1500T Network Card Settings and Configuration
ALLIED TELESYN, INC.
AT-1500T
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | In firmware |

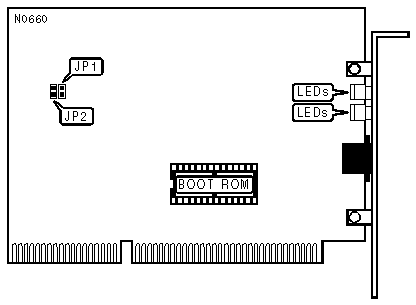

BASE I/O ADDRESS | |||
Address | JP1 | JP2 | |
| » | 300h | Closed | Closed |
320h | Closed | Closed | |
340h | Open | Open | |
360h | Open | Open | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | Off | Data is not being transmitted |
LED1 | Green | On | Data is being transmitted |
LED2 | Yellow | Off | Data is not being received |
LED2 | Yellow | On | Data is being received |
LED3 | Green | On | 10BaseT link integrity exists |
LED3 | Green | Off | 10BaseT link integrity broken |
LED4 | Yellow | On | Collisions detected on network |
LED4 | Yellow | Off | No collisions detected on network |
