VISTALAN/PC MODELS 7310, 7320 (REV. B) Network Card Settings and Configuration

ALLEN-BRADLEY

VISTALAN/PC MODELS 7310, 7320 (REV. B)

NIC Type
VistaLAN (proprietary)
Network Transfer Rate
Unidentified
Data Bus
8-bit ISA
Topology
Linear Bus
Wire Type
RG-6A/U 75ohm coaxial
Boot ROM
Available

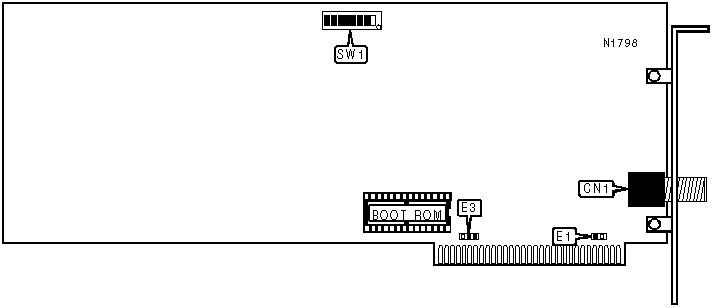

CONNECTIONS
Function
Label
RG-6A/U 75ohm coaxial connector
CN1

NODE ADDRESS
Setting
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
1
Off
On
On
On
On
On
On
On
2
On
Off
On
On
On
On
On
On
3
Off
Off
On
On
On
On
On
On
4
On
On
Off
On
On
On
On
On
5
Off
On
Off
On
On
On
On
On
251
Off
Off
On
Off
Off
Off
Off
Off
252
On
On
Off
Off
Off
Off
Off
Off
253
Off
On
Off
Off
Off
Off
Off
Off
254
On
Off
Off
Off
Off
Off
Off
Off
255
Off
Off
Off
Off
Off
Off
Off
Off
Note: A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=128, SW1/7=64, SW1/6=32, SW1/5=16, SW1/4=8, SW1/3=4, SW1/2=2, SW1/1=1. Turn off the switches and add the values of the switches that are off to obtain the correct node ID. (Off=1, On=0)
Node address 0 is reserved and should not be used.

INTERRUPT
Setting
E1, E3
IRQ2
E1 closed
IRQ3
E1 pin 2, E3 pin 1 closed
IRQ4
E1 pin 2, E3 pin 2 closed
IRQ5
E1 pin 2, E3 pin 3 closed
Note:The settings for IRQ3, IRQ4, and IRQ5 may not be set without a wire-wrapping tool.
