ET-100ST Network Card Settings and Configuration
ADDTRON TECHNOLOGY COMPANY, LTD.

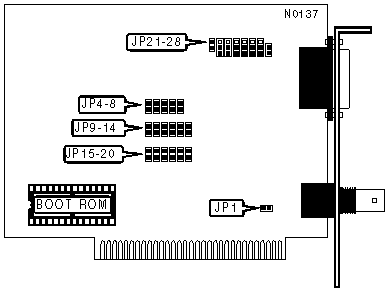

ET-100ST
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 8-bit ISA |
Topology | Linear Bus |
Wiring Type | RG-62A/U 93ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
ON-BOARD TERMINATOR | ||
Setting | JP1 | |
| » | Disabled | Open |
Enabled | Closed | |
Note:If the card is on either end of a linear bus network segment, the onboard terminator may be used instead
| ||
I/O BASE ADDRESS | |||||
Address | JP9 | JP10 | JP11 | JP12 | |
| » | 300h | Open | Open | Open | Closed |
320h | Open | Open | Closed | Open | |
| 340h | Open | Closed | Open | Open | |
360h | Closed | Open | Open | Open | |
DMA CHANNEL | |||||
Channel | JP13 | JP14 | JP19 | JP20 | |
| » | DMA1 | Closed | Open | Closed | Open |
DMA3 | Open | Closed | Open | Closed | |
BOOT ROM ADDRESS | ||||||
Address | JP4 | JP5 | JP6 | JP7 | JP8 | |
| » | C0000h | Open | Open | Open | Open | Open |
C2000h | Closed | Open | Open | Open | Open | |
C4000h | Open | Closed | Open | Open | Open | |
C6000h | Closed | Closed | Open | Open | Open | |
C8000h | Open | Open | Closed | Open | Open | |
CA000h | Closed | Open | Closed | Open | Open | |
CC000h | Open | Closed | Closed | Open | Open | |
CE000h | Closed | Closed | Closed | Open | Open | |
D0000h | Open | Open | Open | Closed | Open | |
D2000h | Closed | Open | Open | Closed | Open | |
D4000h | Open | Closed | Open | Closed | Open | |
D6000h | Closed | Closed | Open | Closed | Open | |
D8000h | Open | Open | Closed | Closed | Open | |
DA000h | Closed | Open | Closed | Closed | Open | |
DE000h | Closed | Closed | Closed | Closed | Open | |
E0000h | Open | Open | Open | Open | Closed | |
E2000h | Closed | Open | Open | Open | Closed | |
E4000h | Open | Closed | Open | Open | Closed | |
E6000h | Closed | Closed | Open | Open | Closed | |
E8000h | Open | Open | Closed | Open | Closed | |
EA000h | Closed | Open | Closed | Open | Closed | |
EC000h | Open | Closed | Closed | Open | Closed | |
EE000h | Closed | Closed | Closed | Open | Closed | |
F0000h | Open | Open | Open | Closed | Closed | |
F2000h | Closed | Open | Open | Closed | Closed | |
Note:Addresses C6000h - CA000h cannot be used in a PC/XT type system. Addresses C0000h - C4000h & E0000h - F2000h cannot be used in a PC/AT type system. | ||||||
INTERRUPT REQUEST | |||||
IRQ | JP15 | JP16 | JP17 | JP18 | |
| » | 3 | Open | Closed | Open | Open |
2 | Closed | Open | Open | Open | |
4 | Open | Open | Closed | Open | |
5 | Open | Open | Open | Closed | |
CABLE TYPE | |||
Type | JP21 | JP22 - JP27 | JP28 |
AUI transceiver via DB-15 port | Open | Pins 2 & 3 closed | Closed |
Unshielded twisted pair | Closed | Pins 1 & 2 closed | Open |
