AE-200STA Network Card Settings and Configuration
ADDTRON TECHNOLOGY COMPANY, LTD.

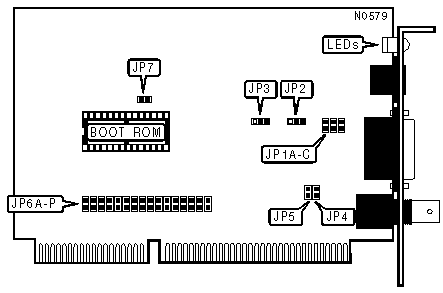

AE-200STA
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear bus |
Wiring Type | Unshielded twisted pair
AUI transceiver via DB-15 |
Boot ROM | Available |
CABLE TYPE | ||||
Type | JP1A | JP1B | JP1C | |
Unshielded twisted pair | Closed | Open | Open | |
| » | RG58A/U 50ohm coaxial | Open | Open | Closed |
AUI transceiver via DB-15 port | Open | Closed | Open | |
LINK INTEGRITY | ||
Function | JP2 | |
| » | Link integrity enabled | Pins 1 & 2 closed |
Link integrity disabled | Pins 2 & 3 closed | |
Note: If card is used in a pre-10BaseT cabling network, disable the link integrity function. | ||
ROM SIZE | |
Size | JP3 |
32KB | Pins 1 & 2 closed |
16KB | Pins 2 & 3 closed |
SEGMENT LENGTH | |
Length | JP4 |
185 meters | Open |
300 meters | Closed |
TERMINATOR | ||
Setting | JP5 | |
| » | Unterminated | Open |
Coaxial linear-bus terminated by card | Closed | |
INTERRUPT SETTINGS | |||||||
IRQ | JP6A | JP6B | JP6C | JP6D | JP6E | JP6F | JP6G |
2/9 | Closed | Open | Open | Open | Open | Open | Open |
3 | Open | Closed | Open | Open | Open | Open | Open |
4 | Open | Open | Closed | Open | Open | Open | Open |
5 | Open | Open | Open | Closed | Open | Open | Open |
10 | Open | Open | Open | Open | Closed | Open | Open |
11 | Open | Open | Open | Open | Open | Closed | Open |
12 | Open | Open | Open | Open | Open | Open | Closed |
BASE I/O ADDRESS | |||||
Address | JP6H | JP6I | JP6J | JP6K | |
| » | 300h | Open | Open | Open | Closed |
320h | Open | Open | Closed | Open | |
340h | Open | Closed | Open | Open | |
360h | Closed | Open | Open | Open | |
BOOT ROM ADDRESS | ||||||
Address | JP6L | JP6M | JP6N | JP6O | JP6P | |
C0000h | Closed | Closed | Closed | Closed | Closed | |
C4000h | Closed | Closed | Closed | Closed | Open | |
| » | C8000h | Closed | Closed | Closed | Open | Closed |
CC000h | Closed | Closed | Closed | Open | Open | |
D0000h | Closed | Closed | Open | Closed | Closed | |
D4000h | Closed | Closed | Open | Closed | Open | |
D8000h | Closed | Closed | Open | Open | Closed | |
DC000h | Closed | Closed | Open | Open | Open | |
E0000h | Closed | Open | Closed | Closed | Closed | |
WAIT STATE CONFIGURATION | ||
Bus Speed | JP7 | |
6MHz - 8MHz | Open | |
| » | > 8MHz | Closed |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Red | Off | data is not being transmitted/received |
LED1 | Red | On | data is being transmitted/received |
LED2 | Green | On | 10BaseT link integrity exists |
LED2 | Green | Off | 10BaseT link integrity broken |
Note:LED2 is only functional when link integrity is enabled, and when installed on a 10BaseT network. | |||
