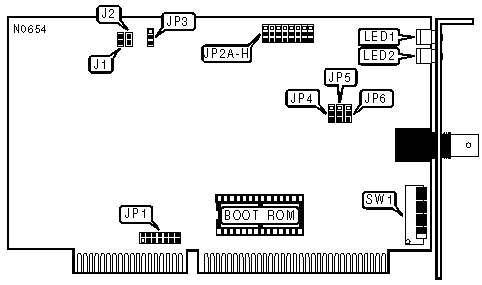

ARC-210 VER. 2 Network Card Settings and Configuration

NIC Type

ARCnet

Transfer Rate

2.5Mbps

Data Bus

16-bit ISA

Topology

Linear bus

Wiring Type

RG-62A/U 93ohm coaxial

Boot ROM

Available

BOOT ROM

Mode

JP1

»

Disabled

Pins 2 & 3 closed

Enabled

Pins 1 & 2 closed

CONNECTIONS

Purpose

Location

Connection for LED1

J1

Connection for LED2

J2

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Data is being transmitted or received.

LED1

Green

Off

Data is not being transmitted or received.

LED1

Green

Blinking

Network connection is broken

LED2

Red

On

Card is being accessed by the host computer

LED2

Red

Off

Card is not being accessed by the host computer

FACTORY CONFIGURED SETTINGS

Jumper

JP1

JP4

Pins 2 & 3 closed

JP5

Pins 2 & 3 closed

JP6

Pins 2 & 3 closed

I/O BASE ADDRESS

Address

JP2/F

JP2/G

JP2/H

»

2E0h - 2EFh

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

260h - 26Fh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

290h - 29Fh

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

2F0h - 2FFh

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

300h - 30Fh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

350h - 35Fh

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

380h - 38Fh

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

3E0h - 3EFh

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

INTERRUPT REQUEST

IRQ

JP1/1

JP1/2

JP1/3

JP1/4

JP1/5

JP1/6

JP1/7

»

2

Closed

Open

Open

Open

Open

Open

Open

3

Open

Closed

Open

Open

Open

Open

Open

4

Open

Open

Closed

Open

Open

Open

Open

5

Open

Open

Open

Closed

Open

Open

Open

10

Open

Open

Open

Open

Closed

Open

Open

11

Open

Open

Open

Open

Open

Closed

Open

12

Open

Open

Open

Open

Open

Open

Closed

NODE ADDRESS

Node

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8

1

Off

On

On

On

On

On

On

On

2

On

Off

On

On

On

On

On

On

3

Off

Off

On

On

On

On

On

On

4

On

On

Off

On

On

On

On

On

251

Off

Off

On

Off

Off

Off

Off

Off

252

On

On

Off

Off

Off

Off

Off

Off

253

Off

On

Off

Off

Off

Off

Off

Off

254

On

Off

Off

Off

Off

Off

Off

Off

255

Off

Off

Off

Off

Off

Off

Off

Off

Note: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn Off the switches and add the values of the Off switches to obtain the correct node address. (On=0, Off=1)

BASE MEMORY ADDRESS AND BOOR ROM ADDRESS

Base Address

Boot ROM Address

JP2A

JP2B

JP2C

JP2D

JP2E

D0000h - D07FFh

D2000h - D3FFFh

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

C0000h - C07FFh

C2000h - C3FFFh

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

C0800h - C0FFFh

C2000h - C3FFFh

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

C1000h - C17FFh

C2000h - C3FFFh

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

C1800h - C1FFFh

C2000h - C3FFFh

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

C4000h - C47FFh

C6000h - C7FFFh

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

C4800h - C4FFFh

C6000h - C7FFFh

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

C5000h - C57FFh

C6000h - C7FFFh

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

C5800h - C5FFFh

C6000h - C7FFFh

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

CC000h - CC7FFh

CE000h - CFFFFh

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

CC800h - CCFFFh

CE000h - CFFFFh

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

CD000h - CD7FFh

CE000h - CFFFFh

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

CD800h - CDFFFh

CE000h - CFFFFh

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

D0800h - D0FFFh

D2000h - D3FFFh

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

D1000h - D17FFh

D2000h - D3FFFh

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

D1800h - D1FFFh

D2000h - D3FFFh

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

D4000h - D47FFh

D6000h- D7FFFh

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

D4800h - D4FFFh

D6000h - D7FFFh

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

D5000h - D57FFh

D6000h - D7FFFh

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

D5800h - D5FFFh

D6000h - D7FFFh

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

D8000h - D87FFh

DA000h - DBFFFh

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

D8800h - D8FFFh

DA000h - DBFFFh

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

D9000h - D97FFh

DA000h - DBFFFh

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

D9800h - D9FFFh

DA000h - DBFFFh

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

DC000h - DC7FFh

DE000h - DFFFFh

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

DC800h - DCFFFh

DE000h - DFFFFh

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

DD000h - DD7FFh

DE000h - DFFFFh

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

DD800h - DDFFFh

DE000h - DFFFFh

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

E0000h - E07FFh

E2000h - E3FFFh

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

E0800h - E0FFFh

E2000h - E3FFFh

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

E1000h - E17FFh

E2000h - E3FFFh

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

E1800h - E1FFFh

E2000h - E3FFFh

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Note:Pins designated should be in the closed position.
