AE-360PCI Network Card Settings and Configuration
ADDTRON TECHNOLOGY COMPANY, INC.
AE-360PCI
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | PCI |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available |

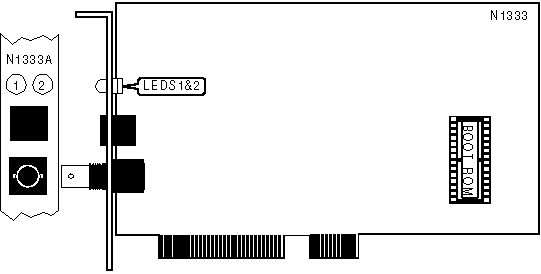

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is broken |
LED2 | Yellow | Blinking | Data is being transmitted/received |
LED2 | Yellow | Off | Data is not being transmitted/received |
