ET-10TC1B Network Card Settings and Configuration

ADDTRON TECHNOLOGY CO., LTD.

ET-10TC1B

Device Type
Transceiver
NIC Type
Ethernet
Maximum Onboard Memory
Unidentified
Boot ROM
Not available
Network Transfer Rate
10Mbps
Topology
Star
Wiring Type
RG-58A/U cable
Data Bus
External

CONNECTIONS
Function
Label
Function
Label

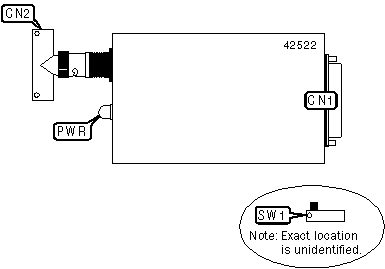

AUI transceiver via DB-15
CN1
RG-58A/U connector (BNC-T)
CN2

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
SQE test function enabled
SW1
On

SQE test function disabled
SW1
Off

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
PWR
Unidentified
On
Power is on
PWR
Unidentified
Off
Power is off
