ET-10FL Network Card Settings and Configuration
ADDTRON TECHNOLOGY CO., LTD.
ET-10FL
Device Type | Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | Fiber Optic cable - ST |
Data Bus | External |
CONNECTIONS | |||

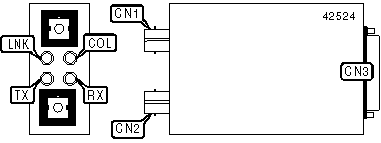

Function | Label | Function | Label |
Fiber optic connector (ST) | CN1 | AUI transceiver via DB-15 | CN3 |
Fiber optic connector (ST) | CN2 | ||
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
RX | Unidentified | Blinking | Data is being received |
RX | Unidentified | On | Heavy LAN traffic load |
RX | Unidentified | Off | Data is not being received |
TX | Unidentified | Blinking | Data is being transmitted |
TX | Unidentified | On | Large data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
LNK | Unidentified | On | Network connection is good |
LNK | Unidentified | Off | Network connection is broken |
COL | Unidentified | Blinking | Collision detected on network |
COL | Unidentified | Off | Collision not detected on network |
COL | Unidentified | On | Possible error occurred |
