AEF-100MT Network Card Settings and Configuration
ADDTRON TECHNOLOGY CO., LTD.
AEF-100MT
Device Type | Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10/100Mbps |
Topology | Star |
Wiring Type | Unshielded Twisted Pair |
Data Bus | External |

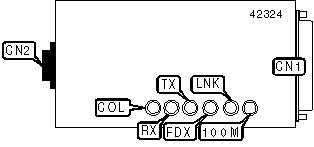

CONNECTIONS | |||
Function | Label | Function | Label |
40-pin DTE port | CN1 | UTP connector (RJ-45) | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
PWR | Unidentified | On | Transceiver is in 100Mbps mode |
PWR | Unidentified | Off | Transceiver is in 100Mbps mode |
LNK | Unidentified | On | Network connection is good |
LNK | Unidentified | Off | Network connection is broken |
FDX | Unidentified | On | Transceiver in full duplex mode |
FDX | Unidentified | Off | Transceiver not in full duplex mode |
TX | Unidentified | On | Data is being transmitted |
TX | Unidentified | Off | Data is not being transmitted |
RX | Unidentified | On | Data is being received |
RX | Unidentified | Off | Data is not being received |
COL | Unidentified | On | Collision detected on network |
COL | Unidentified | Off | No collision detected on network |
