AN-16CT (BNC) Network Card Settings and Configuration

ADDTRON TECHNOLOGY CO., LTD.

AN-16CT (BNC)

NIC Type
Ethernet
Network Transfer Rate
10Mbps
Data Bus
16-bit ISA
Topology
Linear Bus
Wiring Type
RG-58A/U 50ohm coaxial
Boot ROM
Available

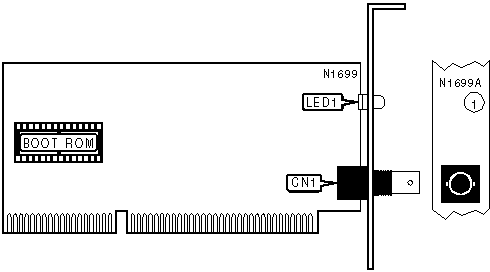

CONNECTIONS
Function
Label
RG-58A/U 50ohm coaxial port
CN1

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
Network connection is good
LED1
Green
Off
Network connection is broken
