ANA-6922 Network Card Settings and Configuration
ADAPTEC, INC.
ANA-6922
Card Type | Network Interface Card |
NIC Type | Ethernet |
Boot ROM | Not available |
Network Transfer Rate | 200Mbps/100Mbps/20Mbps/10Mbps |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair |
Data Bus | 32-bit PCI |

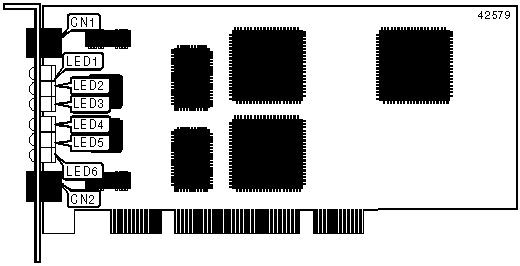

CONNECTIONS | |
Function | Label |
Port 1 via RJ-45 UTP connector | CN1 |
Port 2 via RJ-45 UTP connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good on port 1 |
LED1 | Green | Off | Network connection is not good on port 1 |
LED2 | Yellow | Blinking | Data is being received on port 1 |
LED2 | Yellow | Off | Data is not being received on port 1 |
LED3 | Unidentified | On | Port 1 is operating at 100 Mbps |
LED3 | Unidentified | Off | Port 1 is operating at 10 Mbps |
LED4 | Green | On | Network connection is good on port 2 |
LED4 | Green | Off | Network connection is not good on port 2 |
LED5 | Yellow | Blinking | Data is being received on port 2 |
LED5 | Yellow | Off | Data is not being received on port 2 |
LED6 | Unidentified | On | Port 2 is operating at 100 Mbps |
LED6 | Unidentified | Off | Port 2 is operating at 10 Mbps |
