ETHERNET PCMCIA CARD (UTP) Network Card Settings and Configuration

ACTIONTEC ELECTRONICS, INC.

ETHERNET PCMCIA CARD (UTP)

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
PCMCIA
Topology
Star
Wiring Type
Unshielded twisted pair
Boot ROM
Not available

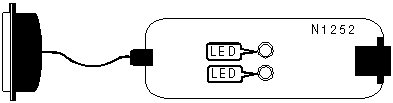

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
Data is being transmitted/received
LED1
Green
Blinking
Network activity detected
LED1
Green
Off
Data is not being transmitted/received
LED2
Green
On
Network connection is good
LED2
Green
Off
Network connection is broken
Note: The exact location of LED1 & LED2 are unidentified.
