ACS-101-25 Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	FDDI
Boot ROM	Not available
Chip Set	AMD
Network Transfer Rate	100Mbps
Topology	Peer-Peer
Wiring Type	Fiber Optic cable, unshielded twisted pair
Data Bus	32-bit PCI

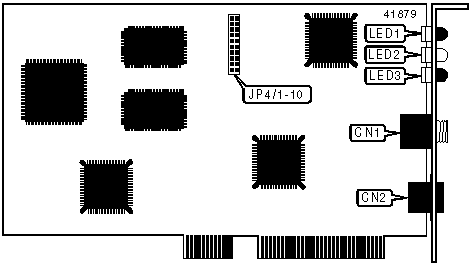

CONNECTIONS
Function	Label	Function	Label
Fiber Optic connector	CN1	Unshielded twisted pair	CN2
Unidentified	CN3

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
LED2	Yellow	On	Primary ring is functioning
LED2	Yellow	Off	Secondary ring is functioning
LED3	Red	On	Network connection is broken
LED3	Red	Off	Network connection is good

INTERRUPT SELECT
IRQ		JP4	JP5	JP6	JP7	JP8	JP9	JP10
	IRQ3	Open	Open	Open	Open	Open	Open	Closed
	IRQ5	Open	Open	Open	Open	Open	Closed	Open
»	IRQ7	Open	Open	Open	Open	Closed	Open	Open
	IRQ9	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Closed	Open	Open	Open	Open
	IRQ12	Open	Closed	Open	Open	Open	Open	Open
	IRQ15	Closed	Open	Open	Open	Open	Open	Open

CABLE TYPE
Type	JP1	JP2	JP3
Fiber optic cable	Open	Closed	Open
Unshielded twisted pair	Closed	Open	Closed
