EN-9400P3 Network Card Settings and Configuration
ACCULAN CORPORATION
EN-9400P3
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
Boot ROM | Not available |

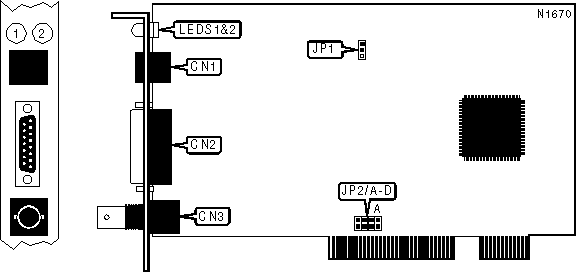

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port | CN1 | RG-58A/U 50ohm coaxial port | CN3 |
AUI transceiver via DB-15 port | CN2 | ||
INTERRUPT SELECTION | ||||
IRQ | JP2/A | JP2/B | JP2/C | JP2/D |
A | Closed | Open | Open | Open |
B | Open | Closed | Open | Open |
C | Open | Open | Closed | Open |
D | Open | Open | Open | Closed |
CABLE TYPE SELECTION | ||
Type | JP1 | |
AUI transceiver via DB-15 port | Pins 2 & 3 closed | |
| » | RG-58A/U 50ohm coaxial | Pins 1 & 2 closed |
Unshielded twisted pair | Open | |
DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | Blinking | Data is being transmitted/received |
LED1 | Off | Data is not being transmitted/received |
LED2 | On | 10Base-T network connection is good |
LED2 | Off | 10Base-T network connection is broken |
