RINGPAIR-MC4/16T (TR1616) Network Card Settings and Configuration

ACCTON TECHNOLOGY CORPORATION

RINGPAIR-MC4/16T (TR1616)

NIC Type
Token Ring
Transfer Rate
4/16Mbps
Data Bus
16-bit ISA
Topology
Ring
Wiring Type
Shielded twisted pair
Unshielded twisted pair
Boot ROM
Not available

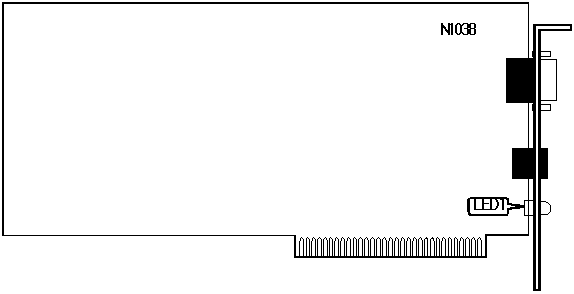

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
16 Mbps transmission speed
LED1
Red
On
4 Mbps transmission speed
