TRANSPAIR-10T Network Card Settings and Configuration

Card Type	Ethernet transceiver
Network Transfer Rate	10Mbps
Data Bus	AUI via DB-15 port
Topology	Star
Wire Type	Unshielded twisted pair

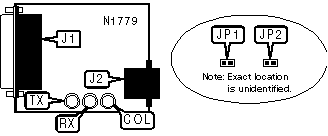

CONNECTIONS
Function	Label	Function	Label
AUI via DB-15 port	J1	Unshielded twisted pair connector	J2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	SQE heartbeat disabled	JP1	Closed
	SQE heartbeat enabled	JP1	Open
»	Link integrity function enabled	JP2	Closed
	Link integrity function disabled	JP2	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TX	Green	On	Power is on
TX	Green	Off	Power is off
TX	Green	Blinking	Transceiver is transmitting data to the network
RX	Green	On	Network connection is good
RX	Green	Blinking	Transceiver is receiving data from the network
RX	Green	Off	Network connection is broken
COL	Red	Blinking	Network collision detected
COL	Red	Off	Network collision not detected
