TRANSOPTICS-AUI (EN2031) Network Card Settings and Configuration
ACCTON TECHNOLOGY CORPORATION
TRANSOPTICS-AUI (EN2031)
Card Type | Ethernet Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 10Mbps |
Topology | Linear Bus |
Wiring Type | AUI transceiver via DB-15 port, Fiber optic cable |
Data Bus | External |

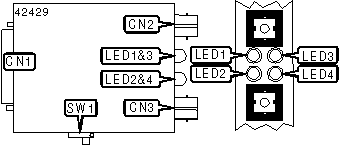

CONNECTIONS | |||
Function | Label | Function | Label |
AUI connector | CN1 | ST receive connector | CN3 |
ST transmit connector | CN2 | ||
USER CONFIGURABLE SETTINGS | ||
Function | Label | Position |
SQE function enabled | SW1 | On |
SQE function disabled | SW1 | Off |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is broken |
LED2 | Yellow | Blinking | Data is being transmitted or received |
LED2 | Yellow | Off | Data is not being transmitted or received |
LED3 | Red | On | Collision detected on network |
LED3 | Red | Off | No collision detected on network |
LED4 | Green | On | Power is on |
LED4 | Green | Off | Power is off |
