TRANSCOAX-II (VER. 1) Network Card Settings and Configuration
ACCTON TECHNOLOGY CORPORATION
TRANSCOAX-II (VER. 1)
Card Type | Ethernet transceiver |
Network Transfer Rate | 10Mbps |
Data Bus | AUI via DB-15 port |
Topology | Linear Bus |
Wire Type | RG-58A/U 50ohm coaxial |
CONNECTIONS | |||

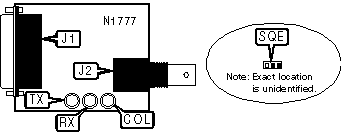

Function | Label | Function | Label |
AUI via DB-15 port | J1 | RG-58A/U 50ohm coaxial connector | J2 |
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | SQE heartbeat disabled | SQE | Pins 2 & 3 closed |
SQE heartbeat enabled | SQE | Pins 1 & 2 closed | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
TX | Green | Blinking | Transceiver is transmitting data to the network |
TX | Green | Off | Transceiver is not transmitting data to the network |
RX | Green | Blinking | Transceiver is receiving data from the network |
RX | Green | Off | Transceiver is not receiving data from the network |
COL | Red | Blinking | Network collision detected |
COL | Red | Off | Network collision not detected |
