ETHERPAIR-16T Network Card Settings and Configuration

NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair port AUI transceiver via DB-15 port
Boot ROM	Available

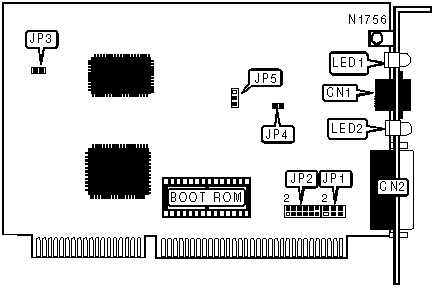

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port	CN1	AUI transceiver via DB-15 port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Turbo function enabled	JP3	Closed
	Turbo function disabled	JP3	Open
»	Link integrity test function enabled	JP4	Closed
	Link integrity test function disabled	JP4	Open
»	Twisted pair connection selected	JP5	Pins 1 & 2 closed
	AUI connection is selected	JP5	Pins 2 & 3 closed

ROM AND BASE I/O ADDRESS SELECTION
Base I/O Address		ROM selection	JP1/pins 1 & 2	JP1/pins 3 & 4	JP1/pins 5 & 6
»	300h	Disabled	On	On	Off
	300h	C8000h	On	On	On
	320h	Disabled	Off	On	Off
	320h	CC000h	Off	On	On
	340h	Disabled	On	Off	Off
	340h	D0000h	On	Off	On
	360h	Disabled	Off	Off	Off

INTERRUPT SELECTION
IRQ		JP2/ pins 1 & 2	JP2/ pins 3 & 4	JP2/ pins 5 & 6	JP2/ pins 7 & 8	JP2/ pins 9 & 10	JP2/ pins 11 & 12
	2/9	Closed	Open	Open	Open	Open	Open
»	3	Open	Closed	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open
	10	Open	Open	Open	Open	Closed	Open
	12	Open	Open	Open	Open	Open	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	UTP link is good (link integrity test enabled)
LED1	Green	Off	UTP link is broken (link integrity test enabled)
LED1	Green	Off	Power on (link integrity test disabled)
LED1	Red	On	UTP link is broken
LED2	Green	On	Power on
LED2	Green	Blinking	Data is being transmitted
LED2	Red	On	Collision detected on network
Note: LED1 is labeled R/J and LED2 is labeled T/C.
