ETHERFAST-TX PCI (EN1207) Network Card Settings and Configuration
ACCTON TECHNOLOGY CORPORATION
ETHERFAST-TX PCI (EN1207)
NIC Type | Ethernet |
Transfer Rate | 10/100Mbps |
Data Bus | PCI |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Not available |

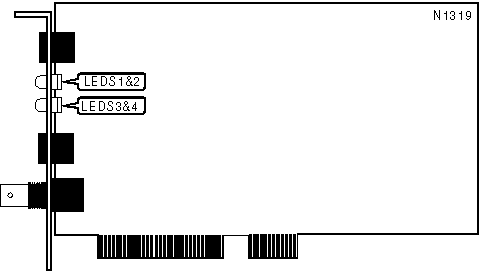

DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | 10Base-T network connection is good (100Mbps) |
LED1 | Green | Off | 10Base-T network connection is broken (100Mbps) |
LED2 | Green | On | 10Base-T network connection is good |
LED2 | Green | Off | 10Base-T network connection is broken |
LED3 | Green | Blinking | Data is being received |
LED3 | Green | Off | Data is not being received |
LED4 | Yellow | On | Network connection is good (10Mbps) |
LED4 | Yellow | Off | Network connection is broken (10Mbps) |
