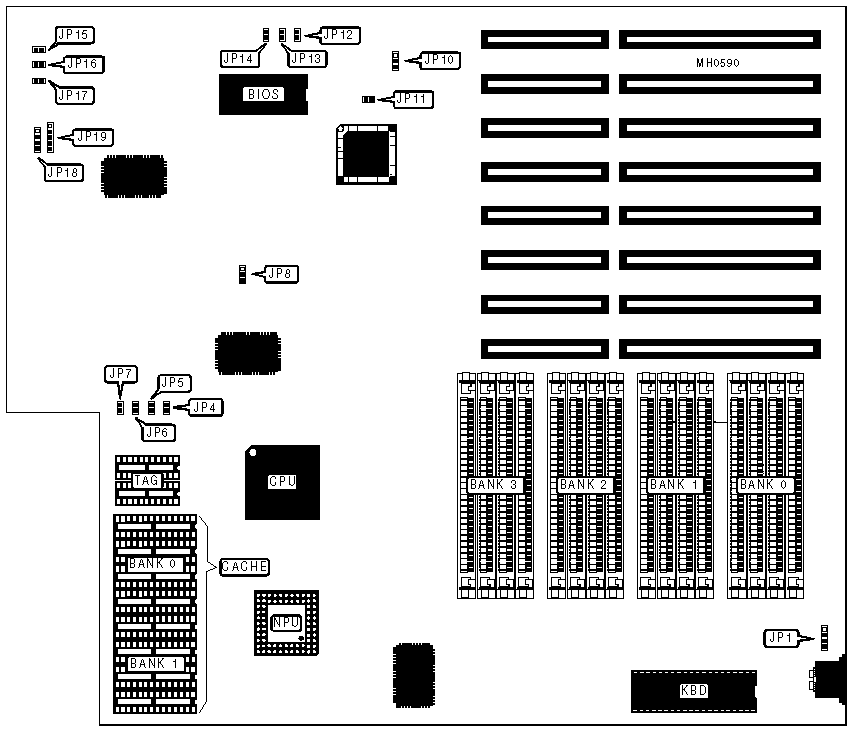

CACHE 386 Motherboard Settings and Configuration

Processor	80386DX
Processor Speed	25/33MHz
Chip Set	SIS
Max. Onboard DRAM	16MB
Cache	None
BIOS	AMI
Dimensions	253mm x 220mm
I/O Options	None
NPU Options	80387

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	JP1	Reset switch	JP17
Turbo switch	JP12	Speaker	JP18
Power LED	JP15	Keylock	JP19
Turbo LED	JP16

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP10	N/A
»	Monitor type select color	JP11	Closed
	Monitor type select monochrome	JP11	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(4) 256K x 9	NONE	NONE	NONE
2MB	(4) 256K x 9	(4) 256K x 9	NONE	NONE
4MB	(4) 1M x 9	NONE	NONE	NONE
8MB	(4) 1M x 9	(4) 1M x 9	NONE	NONE
12MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	NONE
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
32KB	(4) 8K x 8	NONE	(2) 16K x 4
64KB	(4) 32K x 8	(4) 32K x 8	(2) 16K x 4
Note:The locations of Bank 0 & 1 and TAG are unidentified.

CACHE JUMPER CONFIGURATION
Size	JP8
32KB	pins 1 & 2 closed
64KB	pins 2 & 3 closed

CACHE JUMPER CONFIGURATION
Size	JP4	JP5	JP6	JP7
Enabled	Open	Open	Open	Open
Disabled	Closed	Closed	Closed	Closed

BIOS CONFIGURATION
Type	JP13	JP14
AMI	Closed	Open
Award	Open	Closed
