Peter 486-3350 Non-Cache (486-3350N) Motherboard Settings and Configuration

Processor	80486SX/80487SX/80486DX
Processor Speed	33/50MHz
Chip Set	Symphony
Max. Onboard DRAM	32MB
Cache	None
BIOS	AMI/Award
Dimensions	220mm x 218mm
I/O Options	None
NPU Options	None

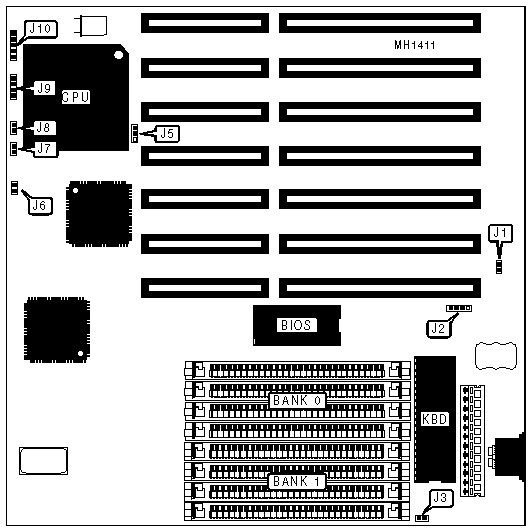

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J2	Reset switch	J8
Turbo LED	J6	Speaker	J9
Turbo switch	J7	Power LED & keylock	J10

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	J1	open
	CMOS memory clear	J1	closed
»	Monitor type select color	J3	closed
	Monitor type select monochrome	J3	open
»	CPU type select 80486DX or 80487SX	J5	pins 2 & 3 closed
	CPU type select 80486SX	J5	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1MB x 9	NONE
8MB	(4) 1MB x 9	(4) 1MB x 9
16MB	(4) 4MB x 9	NONE
32MB	(4) 4MB x 9	(4) 4MB x 9
