386SX-20 Motherboard Settings and Configuration

ZEOS INTERNATIONAL, LTD.

386SX-20

Processor
80386SX
Processor Speed
20MHz
Chip Set
Unidentified
Max. Onboard DRAM
16MB
Cache
None
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
serial ports (2), parallel port, floppy drive interface, IDE interface, game port
NPU Options
80387SX

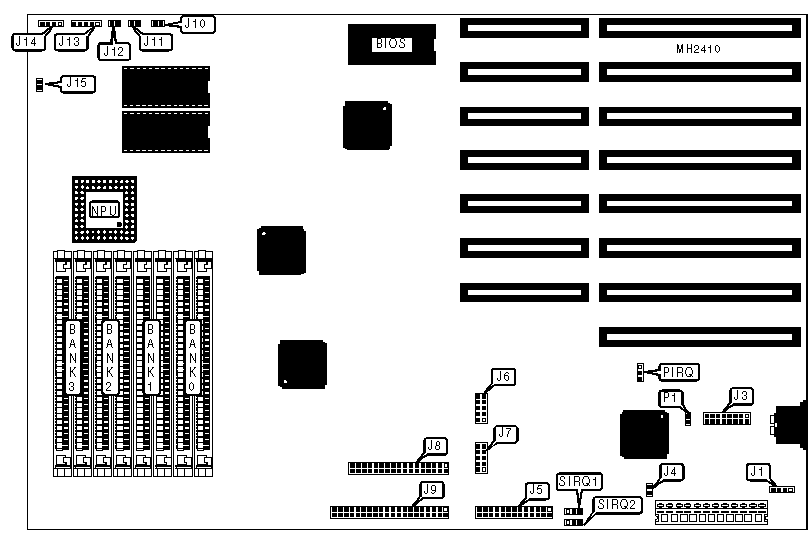

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J1
Turbo switch
J10
Game port
J3
Reset switch
J11
Parallel port
J5
Turbo LED
J12
Serial port 2
J6
Power LED & keylock
J13
Serial port 1
J7
Speaker
J14
Floppy drive interface
J8
IDE interface LED
J15
IDE interface
J9

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Monitor type select CGA
J4
Closed

Monitor type select Mono/EGA/VGA
J4
Open
»
Game port enabled
P1
Closed

Game port disabled
P1
Open
»
Parallel port interupt select IRQ7
PIRQ
pins 1 & 2 closed

Parallel port interupt select IRQ5
PIRQ
pins 2 & 3 closed

Parallel port interupt disabled
PIRQ
all open
»
Serial port 1 (COM1) interupt select IRQ4
SIRQ1
pins 2 & 3 closed

Serial port 1 (COM1) interupt select IRQ3
SIRQ1
pins 1 & 2 closed

Serial port 1 (COM1) interupt disabled
SIRQ1
all open
»
Serial port 2 (COM2) interupt select IRQ3
SIRQ2
pins 1 & 2 closed

Serial port 2 (COM2) interupt select IRQ4
SIRQ2
pins 2 & 3 closed

Serial port 2 (COM2) interupt disabled
SIRQ2
all open

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
512KB
(2) 256K x 9
NONE
NONE
NONE
1MB
(2) 256K x 9
(2) 256K x 9
NONE
NONE
1.5MB
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
NONE
2MB
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
2MB
(2) 1M x 9
NONE
NONE
NONE
3MB
(2) 1M x 9
(2) 256K x 9
(2) 256K x 9
NONE
4MB
(2) 1M x 9
(2) 1M x 9
NONE
NONE
5MB
(2) 1M x 9
(2) 1M x 9
(2) 256K x 9
(2) 256K x 9
6MB
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
NONE
8MB
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
8MB
(2) 4M x 9
NONE
NONE
NONE
9MB
(2) 4M x 9
(2) 256K x 9
(2) 256K x 9
NONE
10MB
(2) 4M x 9
(2) 1M x 9
NONE
NONE
11MB
(2) 4M x 9
(2) 1M x 9
(2) 256K x 9
(2) 256K x 9
12MB
(2) 4M x 9
(2) 1M x 9
(2) 1M x 9
NONE
14MB
(2) 4M x 9
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
16MB
(2) 4M x 9
(2) 4M x 9
NONE
NONE
