XINET XI-286/LS2121 Motherboard Settings and Configuration
XINETRON, INC.
XINET XI-286/LS2121
Processor | 80286 |
Processor Speed | 12MHz |
Chip Set | C & T |
Max. Onboard DRAM | 4MB |
SRAM Cache | None |
BIOS | Unknown |
Dimensions | 360mm x 340mm |
I/O Options | Arcnet interfaces (BNC and twisted pair), floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port |
NPU Options | 80287 |

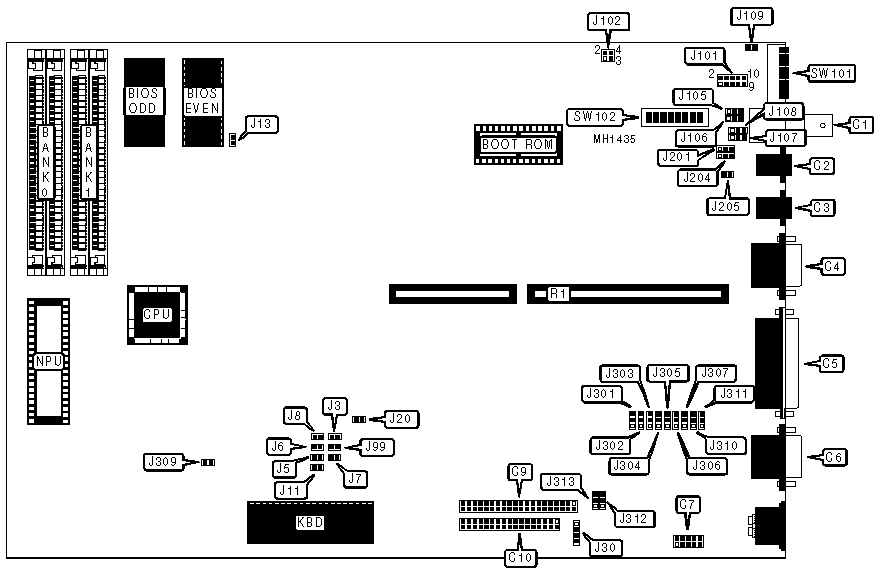

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
BNC network interface | C1 | Serial port (COM2) | C7 |
RJ11 network interface | C2 | IDE interface | C9 |
RJ11 network interface | C3 | Floppy drive interface | C10 |
VGA port | C4 | External battery | J30 |
Parallel port | C5 | Riser card | R1 |
Serial port (COM1) | C6 |
|
|
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
| Factory configured - do not alter | J3 | Unknown |
| Factory configured - do not alter | J5 | Unknown |
» | Monitor type select monochrome, EGA/VGA | J8 | Open |
| Monitor type select color | J8 | Closed |
| Factory configured - do not alter | J11 | Unknown |
» | BIOS type select 27128 | J13 | Open |
| BIOS type select 27256 | J13 | Closed |
| Factory configured - do not alter | J99 | Unknown |
» | Onboard terminator enabled | J109 | Open |
| Onboard terminator disabled | J109 | Closed |
| Factory configured - do not alter | J205 | Unknown |
» | Floppy interface enabled | J306 | pins 2 & 3 closed |
| Floppy interface disabled | J306 | pins 1 & 2 closed |
| Factory configured - do not alter | J307 | Unknown |
| Factory configured - do not alter | J309 | Unknown |
| Factory configured - do not alter | J310 | Unknown |
| Factory configured - do not alter | J311 | Unknown |
» | IDE interface enabled | J312 & J313 | pins 2 & 3 closed |
| IDE interface disabled | J312 & J313 | pins 1 & 2 closed |
Note: If the system is on either end of a linear bus network segment, or used in a star network topology, the onboard terminator may be used instead of an external terminator. | |||
ONBOARD VIDEO CONFIGURATION | |||
Function | J201 | J204 | |
» | Onboard video enabled | pins 2 & 3 closed | pins 2 & 3 closed |
| Onboard video disabled | pins 1 & 2 closed | pins 1 & 2 closed |
SERIAL PORT CONFIGURATION | |||||
COM1 | COM2 | J303 | J304 | J305 | |
» | Enabled | Enabled | pins 2 & 3 closed | pins 2 & 3 closed | pins 2 & 3 closed |
| Enabled | Disabled | pins 2 & 3 closed | pins 1 & 2 closed | pins 2 & 3 closed |
| Disabled | Enabled | pins 1 & 2 closed | pins 2 & 3 closed | pins 2 & 3 closed |
| Disabled | Disabled | pins 1 & 2 closed | pins 1 & 2 closed | pins 1 & 2 closed |
PARALLEL PORT 1 (C3) CONFIGURATION | |||
LPT | J301 | J302 | |
» | LPT 1 | pins 1 & 2 closed | pins 2 & 3 closed |
| LPT 2 | pins 2 & 3 closed | pins 2 & 3 closed |
| LPT 3 | pins 2 & 3 closed | pins 1 & 2 closed |
| Disabled | pins 1 & 2 closed | pins 1 & 2 closed |
DRAM CONFIGURATION | |||||
Size | J6 | J7 | J20 | Bank 0 | Bank 1 |
512KB | Closed | Closed | Closed | (2) 256K x 9 | NONE |
1MB | Closed | Open | Closed | (2) 256K x 9 | (2) 256K x 9 |
2MB | Open | Open | Closed | (2) 1M x 9 | NONE |
4MB | Closed | Closed | Open | (2) 1M x 9 | (2) 1M x 9 |
ARCNET NETWORK INTERFACE CONFIGURATION | |||||||
Function | J101 | J103 | J105 | J106 | J107 | J108 | |
» | BNC connection | Closed | Closed | pins 2 & 3 | pins 2 & 3 | N/A | N/A |
| Twisted pair (1st pair) | Closed | Closed | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| Twisted pair (2nd pair) | Closed | Closed | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| Disabled | Open | Open | N/A | N/A | N/A | N/A |
ARCNET INTERRUPT REQUEST CONFIGURATION | ||
Setting | J101 | |
» | IRQ 2 | pins 9 & 10 closed |
| IRQ 3 | pins 7 & 8 closed |
| IRQ 4 | pins 5 & 6 closed |
| IRQ 5 | pins 3 & 4 closed |
| IRQ 7 | pins 1 & 2 closed |
NODE ADDRESS | ||||||||
Node | SW101/1 | SW101/2 | SW101/3 | SW101/4 | SW101/5 | SW101/6 | SW101/7 | SW101/8 |
0 | - | - | - | - | - | - | - | - |
1 | On | On | On | On | On | On | On | Off |
2 | On | On | On | On | On | On | Off | On |
3 | On | On | On | On | On | On | Off | Off |
4 | On | On | On | On | On | Off | On | On |
251 | Off | Off | Off | Off | Off | On | Off | Off |
252 | Off | Off | Off | Off | Off | Off | On | On |
253 | Off | Off | Off | Off | Off | Off | On | Off |
254 | Off | Off | Off | Off | Off | Off | Off | On |
255 | Off | Off | Off | Off | Off | Off | Off | Off |
Notes: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 8 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 1=128, 2=64, 3=32, 4=16, 5=8, 6=4, 7=2, 8=1. Turn Off the switches and add the values of the Off switches to obtain the correct node address. (On=0, Off=1) | ||||||||
RESPONSE/RECONFIGURATION TIMEOUTS | ||||
Response Time | Idle Time | Reconfig. Time | J102/pins 1 & 2 | J102/pins 3 & 4 |
1130 (m) | 1237 (m) | 1680ms | Closed | Closed |
563 (m) | 624 (m) | 1680ms | Closed | Open |
285 (m) | 316 (m) | 1680ms | Open | Closed |
78 (m) | 86 (m) | 840ms | Open | Open |
BASE MEMORY ADDRESS AND BOOT ROM ADDRESS | ||||||
Base Address | Boot ROM Address | SW102/1 | SW102/2 | SW102/3 | SW102/4 | SW102/5 |
C0000-C07FFh | C2000-C3FFFh | On | On | On | On | On |
C0800-C0FFFh | C2000-C3FFFh | Off | On | On | On | On |
C1000-C17FFh | C2000-C3FFFh | On | Off | On | On | On |
C1800-C1FFFh | C2000-C3FFFh | Off | Off | On | On | On |
C4000-C47FFh | C6000-C7FFFh | On | On | Off | On | On |
C4800-C4FFFh | C6000-C7FFFh | Off | On | Off | On | On |
C5000-C57FFh | C6000-C7FFFh | On | Off | Off | On | On |
C5800-C5FFFh | C6000-C7FFFh | Off | Off | Off | On | On |
CC000-CC7FFh | CE000-CFFFFh | On | On | On | Off | On |
CC800-CCFFFh | CE000-CFFFFh | Off | On | On | Off | On |
CD000-CD7FFh | CE000-CFFFFh | On | Off | On | Off | On |
CD800-CDFFFh | CE000-CFFFFh | Off | Off | On | Off | On |
D0000-D07FFh | D2000-D3FFFh | On | On | Off | Off | On |
D0800-D0FFFh | D2000-D3FFFh | Off | On | Off | Off | On |
D1000-D17FFh | D2000-D3FFFh | On | Off | Off | Off | On |
D1800-D1FFFh | D2000-D3FFFh | Off | Off | Off | Off | On |
D4000-D47FFh | D6000-D7FFFh | On | On | On | On | Off |
D4800-D4FFFh | D6000-D7FFFh | Off | On | On | On | Off |
D5000-D57FFh | D6000-D7FFFh | On | Off | On | On | Off |
D5800 D5FFFh | D6000-D7FFFh | Off | Off | On | On | Off |
D8000-D87FFh | DA000-DBFFFh | On | On | Off | On | Off |
D8800-D8FFFh | DA000-DBFFFh | Off | On | Off | On | Off |
D9000-D97FFh | DA000-DBFFFh | On | Off | Off | On | Off |
D9800-D9FFFh | DA000-DBFFFh | Off | Off | Off | On | Off |
DC000-DC7FFh | DE000-DFFFFh | On | On | On | Off | Off |
DC800-DCFFFh | DE000-DFFFFh | Off | On | On | Off | Off |
DD000-DD7FFh | DE000-DFFFFh | On | Off | On | Off | Off |
DD800-DDFFFh | DE000-DFFFFh | Off | Off | On | Off | Off |
E0000-E07FFh | E2000-E3FFFh | On | On | Off | Off | Off |
E0800-E0FFFh | E2000-E3FFFh | Off | On | Off | Off | Off |
E1000-E17FFh | E2000-E3FFFh | On | Off | Off | Off | Off |
E1800-E1FFFh | E2000-E3FFFh | Off | Off | Off | Off | Off |
BASE MEMORY ADDRESS CONFIGURATION | |||
Address | SW102/6 | SW102/7 | SW102/8 |
260-26Fh | Off | Off | Off |
290-29Fh | On | Off | Off |
2E0-2EFh | Off | On | Off |
2F0-2FFh | On | On | Off |
300-30Fh | Off | Off | On |
350-35Fh | On | Off | On |
380-38Fh | Off | On | On |
3E0-3EFh | On | On | On |
