WYSE DECISION 486SI Motherboard Settings and Configuration

WYSE TECHNOLOGY, INC.

WYSE DECISION 486SI

Processor
80486SX/80486DX/80486DX2
Processor Speed
16/20/25/33/50(internal)/66(internal)MHz
Chip Set
Unidentified
Max. Onboard DRAM
64MB
Cache
64/256KB
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
PS/2 mouse port, parallel port, serial ports (2), VGA port, floppy drive interface, IDE interface
NPU Options
4167

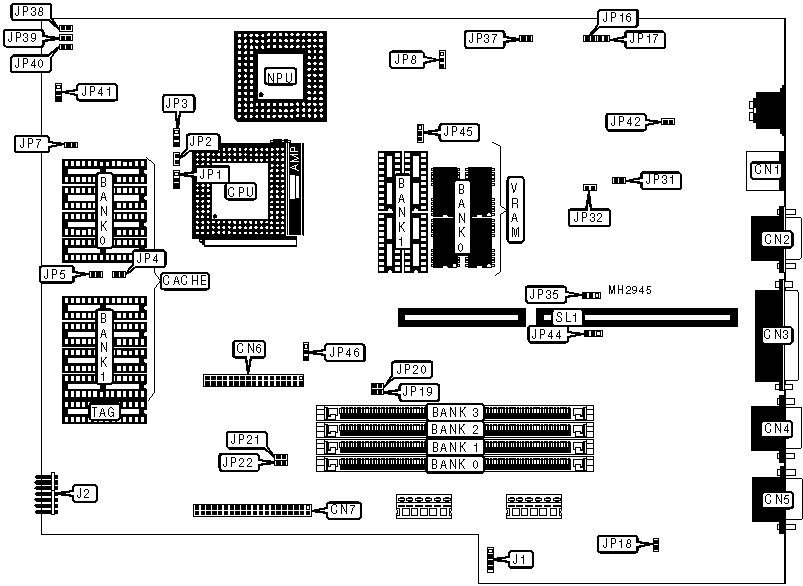

CONNECTIONS
Purpose
Location
Purpose
Location
PS/2 mouse port
CN1
Floppy drive interface
CN6
VGA port
CN2
IDE interface
CN7
Parallel port
CN3
External battery
J1
Serial port 2
CN4
Front panel connector
J2
Serial port 1
CN5
Riser Card
SL1

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Monitor type select color
JP16
Closed

Monitor type select monochrome
JP16
Open
»
Factory configured - do not alter
JP17
Open

IDE interface enabled
JP18
Open
»
IDE interface disabled
JP18
Closed
»
Factory configured - do not alter
JP19
Open
»
Factory configured - do not alter
JP20
Open
»
Factory configured - do not alter
JP21
Open
»
Factory configured - do not alter
JP22
Open
»
IRQ2 enabled
JP33
Open

IRQ2 disabled
JP33
Closed
»
ET4000 VGA card revision select revision G
JP37
Closed

ET4000 VGA card revision select revision F
JP37
Open
»
Clock generator select normal
JP41
pins 1 & 2 closed

Clock generator select oscillator
JP41
pins 2 & 3 closed
»
WY-790 enabled
JP42
Closed

WY-790 disabled
JP42
Open
»
Diskette controller IRQ select IRQ7
JP44
pins 1 & 2 closed

Diskette controller IRQ select IRQ5
JP44
pins 2 & 3 closed
»
Linear address enabled
JP46
pins 2 & 3 closed

Linear address disabled
JP46
pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(1) 256K x 36
NONE
NONE
NONE
2MB
(1) 256K x 36
(1) 256K x 36
NONE
NONE
4MB
(1) 1M x 36
NONE
NONE
NONE
5MB
(1) 1M x 36
(1) 256K x 36
NONE
NONE
6MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
NONE
7MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
8MB
(1) 1M x 36
(1) 1M x 36
NONE
NONE
9MB
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36
NONE
10MB
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
12MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
NONE
13MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
16MB
(1) 4M x 36
NONE
NONE
NONE
17MB
(1) 4M x 36
(1) 256K x 36
NONE
NONE
18MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
NONE
19MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
20MB
(1) 4M x 36
(1) 1M x 36
NONE
NONE
21MB
(1) 4M x 36
(1) 1M x 36
(1) 256K x 36
NONE
22MB
(1) 4M x 36
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
24MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
NONE
25MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
28MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
32MB
(1) 4M x 36
(1) 4M x 36
NONE
NONE
33MB
(1) 4M x 36
(1) 4M x 36
(1) 256K x 36
NONE
34MB
(1) 4M x 36
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
36MB
(1) 4M x 36
(1) 4M x 36
(1) 1M x 36
NONE
37MB
(1) 4M x 36
(1) 4M x 36
(1) 1M x 36
(1) 256K x 36
40MB
(1) 4M x 36
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
48MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
NONE
49MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 256K x 36
52MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 1M x 36
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG
64KB
(4) 8K x 8
(4) 8K x 8
(1) 8K x 8
256KB
(4) 32K x 8
(4) 32K x 8
(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
JP4
JP5
JP7
None
Open
Open
Open
64KB
Open
Open
Open
256KB
Closed
Closed
Closed

CPU TYPE CONFIGURATION
Type
JP1
JP2
JP3
80486SX
Open
Open
pins 1 & 2 closed
80486DX
pins 1 & 2 closed
Closed
pins 2 & 3 closed
SL80486DX2
pins 1 & 2 closed
Closed
pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed
JP38
JP39
JP40
16MHz
Closed
Open
Closed
20MHz
Closed
Open
Open
25MHz
Open
Closed
Closed
33MHz
Open
Closed
Open
50iMHz
Open
Closed
Closed
66iMHz
Open
Closed
Open

VRAM CONFIGURATION
Size
Bank 0
Bank 1
512KB
(4) 256K x 4
NONE
1MB
(4) 256K x 4
(4) 256K x 4

VGA CONFIGURATION
Setting
JP8
JP35
JP45
Enabled
pins 2 & 3 closed
pins 1 & 2 closed
pins 1 & 2 closed
Disabled
pins 1 & 2 closed
pins 2 & 3 closed
pins 2 & 3 closed

VGA WAIT STATE CONFIGURATION
Wait states
JP31
JP32
0 wait states
Closed
Open
1 wait state
Open
Closed
