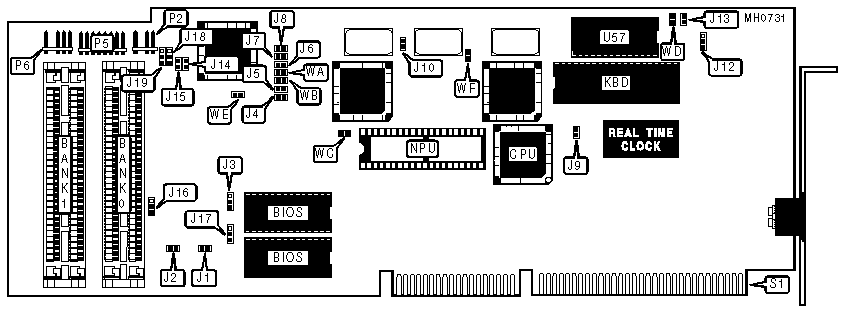

WYSE PC 286 MODEL 2116I Motherboard Settings and Configuration

Processor	80286
Processor Speed	16MHz
Chip Set	WYSE
Max. Onboard DRAM	4MB
Cache	None
BIOS	WYSE
Dimensions	334mm x 122mm
I/O Options	None
NPU Options	80287

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	P2	Power good/Speaker	P6
Front panel connector	P5	Card edge connector	S1

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	J3	pins 1 & 2 closed
»	DRAM wait state select 0	J6	Closed
	DRAM wait state select 1	J6	Open
»	Parity check enabled	J9	Closed
	Parity check disabled	J9	Open
»	Factory configured - do not alter	J10	Open
»	Keyboard scanner chip at U57 select PROM chip	J12	pins 1 & 2 closed
	Keyboard scanner chip at U57 select EPROM chip	J12	pins 2 & 3 closed
»	Factory test disabled	J13	Open
	Factory test enabled	J13	Closed
»	Factory configured - do not alter	J17	pins 2 & 3 closed
»	Chipset select LB ASIC 211008-02	J18 and J19	pins 2 & 3 closed
	Chipset select LB ASIC 211008-01	J18 and J19	pins 1 & 2 closed
»	Factory configured - do not alter	WC	Open
»	Monitor type select color	WD	Closed
	Monitor type select monochrome	WD	Open
»	Factory configured - do not alter	WE	Closed
»	Factory configured - do not alter	WF	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x9

DRAM JUMPER CONFIGURATION
Size	J5	J14	J15	J16
1MB	Closed	Closed	Open	pins 2 & 3 closed
2MB	Open	Open	Closed	pins 1 & 2 closed
4MB	Open	Open	Closed	pins 1 & 2 closed

MEMORY SPLIT CONFIGURATION
Memory Split	J4	WA	WB
256KB/786KB	Closed	N/A	Open
512KB/512KB	Open	Closed	Open
640KB/384KB	Open	Open	Open
Disabled	Open	N/A	Closed

BIOS CONFIGURATION
Type	J1	J2
27128	Open	Open
27256	Closed	Open
27512	Closed	Closed

BIOS WAIT STATE CONFIGURATION
Wait state	J7	J8
0	Closed	Open
1	Open	Open
2	N/A	Closed
