PM586PA PCI Motherboard Settings and Configuration

UNIDENTIFIED

PM586PA PCI

Processor
Pentium
Processor Speed
60/66MHz
Chip Set
ALI
Max. Onboard DRAM
384MB
Cache
256/512/1024KB
BIOS
Award
Dimensions
330mm x 218mm
I/O Options
32-bit PCI slots (4), green PC connector
NPU Options
None

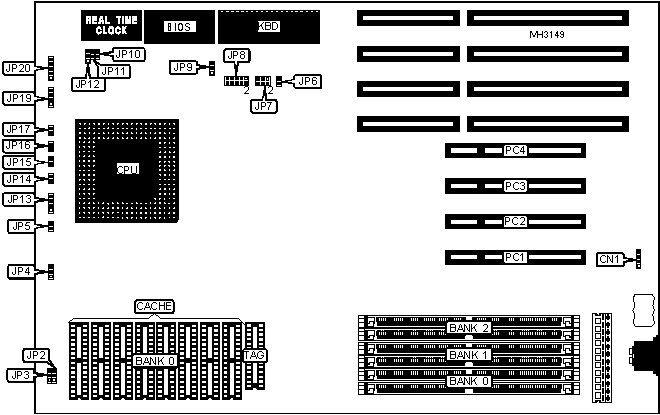

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
CN1
Reset switch
JP14
Chassis fan power
JP5
Turbo switch
JP16
Green PC connector (monitor)
JP8 pins 5 & 6
Turbo LED
JP17
Power supply fan
JP8 pins 7 & 8
Speaker
JP19
Chassis fan power
JP8 pins 9 & 10
Power LED & keylock
JP20
Chassis fan power
JP13
32-bit PCI slots
PC1 - PC4

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
CPU fan control always on
JP4
pins 2 & 3 closed

CPU fan control controlled by BIOS setup
JP4
pins 1 & 2 closed
»
ADS# select normal operation
JP6
Closed

ADS# select delay ADS#
JP6
Open
»
Factory configured - do not alter
JP8 pins 1 & 2
N/A
»
Factory configured - do not alter
JP8 pins 3 & 4
N/A
»
Factory configured - do not alter
JP9
N/A
»
CMOS memory normal operation
JP10
Open

CMOS memory clear
JP10
Closed
»
Factory configured - do not alter
JP11
N/A
»
Factory configured - do not alter
JP12
N/A
»
Factory configured - do not alter
JP15
N/A

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
2MB
(2) 256K x 36
NONE
NONE
4MB
(2) 256K x 36
(2) 256K x 36
NONE
4MB
(2) 512K x 36
NONE
NONE
6MB
(2) 256K x 36
(2) 256K x 36
(2) 256K x 36
6MB
(2) 256K x 36
(2) 512K x 36
NONE
6MB
(2) 512K x 36
(2) 256K x 36
NONE
8MB
(2) 256K x 36
(2) 512K x 36
(2) 256K x 36
8MB
(2) 1M x 36
NONE
NONE
10MB
(2) 512K x 36
(2) 512K x 36
(2) 256K x 36
10MB
(2) 1M x 36
(2) 256K x 36
NONE
12MB
(2) 1M x 36
(2) 256K x 36
(2) 256K x 36
12MB
(2) 1M x 36
(2) 512K x 36
NONE
14MB
(2) 1M x 36
(2) 512K x 36
(2) 256K x 36
16MB
(2) 1M x 36
(2) 1M x 36
NONE
16MB
(2) 2M x 36
NONE
NONE
20MB
(2) 1M x 36
(2) 512K x 36
(2) 1M x 36
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
NONE
32MB
(2) 2M x 36
(2) 1M x 36
(2) 1M x 36
32MB
(2) 2M x 36
(2) 2M x 36
NONE
32MB
(2) 4M x 36
NONE
NONE
40MB
(2) 2M x 36
(2) 2M x 36
(2) 1M x 36
64MB
(2) 4M x 36
(2) 4M x 36
NONE
64MB
(2) 8M x 36
NONE
NONE
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 4M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
NONE
128MB
(2) 16M x 36
NONE
NONE

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
160MB
(2) 8M x 36
(2) 8M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
NONE
224MB
(2) 16M x 36
(2) 8M x 36
(2) 4M x 36
256MB
(2) 16M x 36
(2) 16M x 36
NONE
288MB
(2) 16M x 36
(2) 16M x 36
(2) 4M x 36
384MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36

CACHE CONFIGURATION
Size
Bank 0
TAG
256KB
(8) 32K x 8
(1) 32K x 8
512KB
(8) 64K x 8
(1) 32K x 8
1MB
(8) 128K x 8
(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
JP2
JP3
256KB
pins 1 & 2 closed
pins 1 & 2 closed
512KB
pins 1 & 2 closed
pins 2 & 3 closed
1MB
pins 2 & 3 closed
pins 2 & 3 closed

CPU SPEED CONFIGURATION
Speed
JP7 pins 1 & 2
60MHz
Closed
66MHz
Open
Note: Pins 3, 4, 5, 6 are not used.
