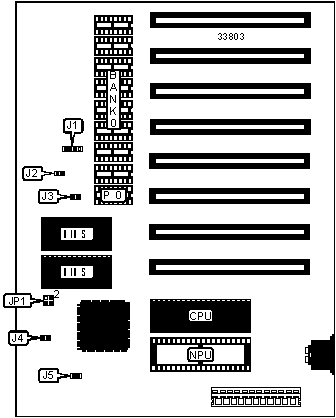

PETER-10 Motherboard Settings and Configuration

Processor	8088
Processor Speed	10MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	1MB
Maximum Video Memory	None
Cache	None
BIOS	Unidentified
Dimensions	216mm x 165mm
I/O Options	None
NPU Options	8087

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED	J1 pins 1 & 2	Turbo LED	J3
Speaker	J1 pins 3 & 4	Reset switch	J4
Turbo switch	J2	Keylock	J5

DRAM CONFIGURATION
Size	Bank 0	P 0
1MB	(8) 411000	(1) 411000

MONITOR CONFIGURATION
Setting	JP1
None	Pins 1 & 2, 3 & 4 closed
Color (80 x 25)	Pins 1 & 2 closed
Color (40 x 25)	Pins 3 & 4 closed
Monochrome	Open
