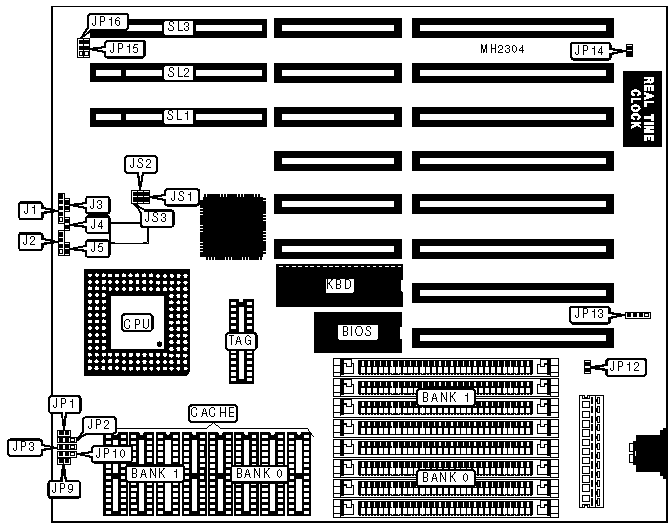

452S Motherboard Settings and Configuration

Processor	80486SX/80487SX/80486DX/80486DX2/Pentium Overdrive
Processor Speed	25/33/40/50(internal)/50/66(internal)MHz
Chip Set	SIS
Max. Onboard DRAM	32MB
Cache	64/128/256KB
BIOS	AMI
Dimensions	254mm x 220mm
I/O Options	32-bit VESA local bus slots (3)
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J1	Reset switch	J5
Speaker	J2	External battery	JP13
Turbo LED	J3	32-bit VESA local bus slots	SL1 - SL3
Turbo switch	J4

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select monochrome	JP12	Open
	Monitor type select color	JP12	Closed
»	CMOS memory normal operation	JP14	Open
	CMOS memory clear	JP14	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
20MB	(4) 1M x 9	(4) 4M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(1) 8K x 8
128KB	(4) 32K x 8	NONE	(1) 8K x 8
256KB	(4) 32K x 8	(4) 32K x 8	(1) 16K x 8 or (1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP9	JP10
64KB	Open	Open
128KB	Closed	pins 1 & 2 closed
256KB	Closed	pins 2 & 3 closed

CPU TYPE CONFIGURATION
Type	JP1	JP2	JP3
80486SX	Open	pins 2 & 3 closed	Open
80487SX	Closed	pins 1 & 2 closed	pins 2 & 3 closed
80486DX/DX2	Closed	pins 1 & 2 closed	pins 1 & 2 closed
Pentium Overdrive	Closed	pins 1 & 2 closed	pins 2 & 3 closed

CPU SPEED CONFIGURATION
Type	JS1	JS2	JS3
25MHz	Open	Open	Closed
33MHz	Closed	Open	Open
40MHz	Closed	Closed	Open
50iMHz	Open	Open	Closed
50MHz	Open	Closed	Open
66iMHz	Closed	Open	Open

VESA WAIT STATE CONFIGURATION
Wait states	JP16
0 wait states	pins 1 & 2 closed
1 wait state	pins 2 & 3 closed

BUS SPEED CONFIGURATION
CPU speed	JP15
<= 33MHz	pins 1 & 2 closed
> 33MHz	pins 2 & 3 closed
