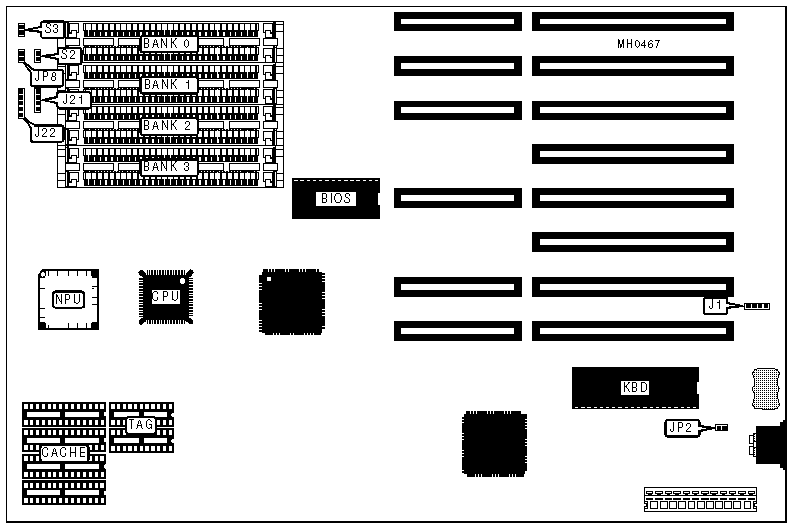

386SX 20/25 Motherboard Settings and Configuration






UNIDENTIFIED

386SX 20/25

Processor

80386SX

Processor Speed

20/25MHz

Chip Set

OPTI

Max. Onboard DRAM

8MB

Cache

32KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80387SX

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J1

Turbo LED

JP8

Speaker

J21

Reset switch

S2

Power LED & keylock

J22

Turbo switch

S3

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

Monitor type select color

JP2

Closed



Monitor type select monochrome

JP2

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

512KB

(2) 256K x 9

NONE

NONE

NONE

1MB

(2) 256K x 9

(2) 256K x 9

NONE

NONE

2MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

3MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

NONE

4MB

(2) 1M x 9

(2) 1M x 9

NONE

NONE

5MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

(2) 1M x 9

6MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

NONE

8MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

CACHE CONFIGURATION

Size

Bank 0

TAG

32KB

(4) 8K x 8

(2) 16K x 4
