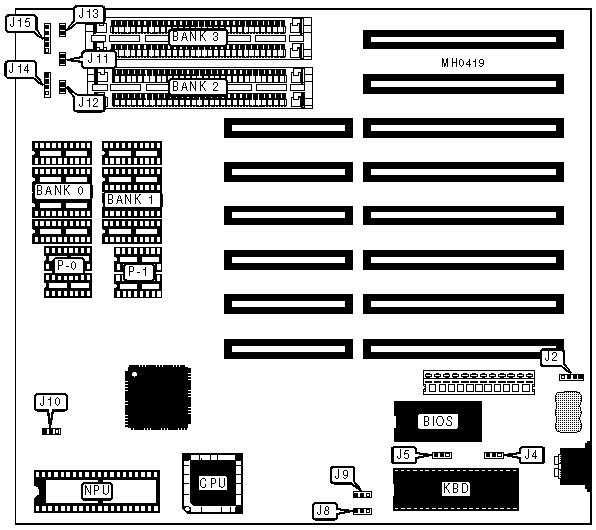

80286-12 TURBO Motherboard Settings and Configuration

UNIDENTIFIED

80286-12 TURBO

Processor
80286
Processor Speed
12MHz
Chip Set
Unknown
Max. Onboard DRAM
4MB
Cache
None
BIOS
AMI
Dimensions
243mm x 218mm
I/O Options
None
NPU Options
80287

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J2
Reset switch
JP13
Turbo LED
JP11
Speaker
JP14
Turbo switch
JP12
Power LED & keylock
JP15

USER CONFIGURABLE SETTINGS
Function
Jumper
Position

Factory configured - do not alter
J8
N/A

Factory configured - do not alter
J9
N/A
»
NPU mode select synchronous with CPU
J10
pins 2 & 3 closed

NPU mode select asynchronous with CPU
J10
pins 1 & 2 closed
»
Monitor type select color
JP5
pins 2 & 3 closed

Monitor type select monochrome
JP5
pins 1 & 2 closed

DRAM CONFIGURATION
Size
Bank 0
P-0
Bank 1
P-1
Bank 2
Bank 3
512KB
(4) 44256
(2) 41256
NONE
NONE
NONE
NONE
512KB
NONE
NONE
NONE
NONE
(2) 256K x 9
NONE
640KB
(4) 44256
(2) 41256
(4) 4464
(2) 4164
NONE
NONE
1MB
(4) 44256
(2) 41256
(4) 44256
(2) 41256
NONE
NONE
1MB
NONE
NONE
NONE
NONE
(2) 256K x 9
(2) 256K x 9
2MB
NONE
NONE
NONE
NONE
(2) 1M x 9
NONE
4MB
NONE
NONE
NONE
NONE
(2) 1M x 9
(2) 1M x 9
Notes:Locations of Bank 0, Bank 1, P0, & P1 unidentified. Bank 0 consists of U26, U27, U31, & U32. Bank 1 consists of U35, U36, U37, & U38. P-0 consists of U41 & U42. P-1 consists of U43 & U44.
