S1952DLU Motherboard Settings and Configuration

TYAN COMPUTER CORPORATION

S1952DLU

Device Type
Mainboard
Processor
Pentium II
Processor Speed
350/400/450/500MHz
Chip Set
Intel 440GX
Maximum Onboard Memory
2GB (SDRAM supported)
Cache
256/512KB (located on Pentium II CPU)
BIOS
AMI
Dimensions
355mm x 304mm
I/O Options
32-bit PCI slots (6), floppy drive interface, IDE interfaces (2), SCSI interface, Wide Ultra SCSI interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, RAID slot, wake on LAN connector, wake on modem connector

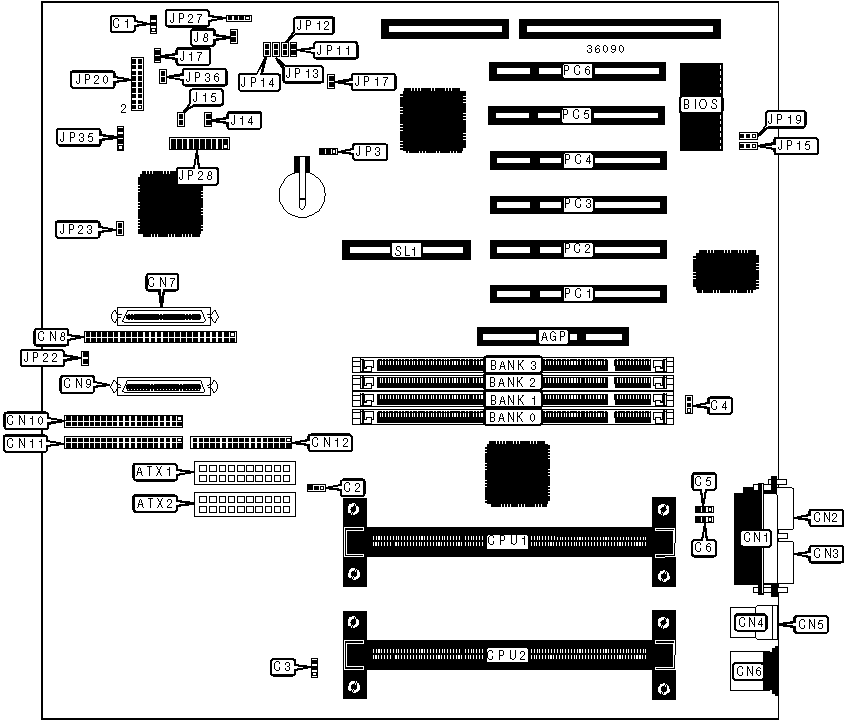

CONNECTIONS
Purpose
Location
Purpose
Location
AGP slot
AGP
IDE interface 1
CN10
ATX power connector
ATX1
IDE interface 2
CN11
ATX power connector
ATX2
Floppy drive interface
CN12
Chassis fan power
C1
Chassis intrusion connector
J8
CPU fan power
C2
Wake on LAN connector
JP15
CPU fan power
C3
Green PC connector
JP17
Chassis fan power
C4
Wake on modem connector
JP19
CPU fan power
C5
IDE interface LED
JP20/pins 1 - 3
CPU fan power
C6
Power LED
JP20/pins 2 & 4
Parallel port
CN1
Reset switch
JP20/pins 5 & 7
Serial port 2
CN2
Soft off power supply
JP20/pins 6 & 8
Serial port 1
CN3
IR connector
JP20/pins 9 & 15
USB connector 1
CN4
SCSI interface LED
JP27
USB connector 2
CN5
Server management connector
JP28
PS/2 mouse port
CN6
Speaker
JP35
Wide Ultra SCSI interface
CN7
32-bit PCI slots
PC1 - PC6
SCSI interface
CN8
RAID slot
SL1
Wide Ultra SCSI interface
CN9

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
J14
Unidentified
»
Factory configured - do not alter
J15
Unidentified
»
Factory configured - do not alter
J17
Unidentified
»
Factory configured - do not alter
JP2
Unidentified
»
CMOS memory normal operation
JP3
Pins 1 & 2 closed

CMOS memory clear
JP3
Pins 2 & 3 closed
»
Factory configured - do not alter
JP21
Unidentified
»
Factory configured - do not alter
JP22
Unidentified
»
Factory configured - do not alter
JP23
Unidentified

On board SCSI enabled
JP36
Open

On board SCSI disabled
JP36
Closed
Note: The location of JP2 & JP21 are unidentified.

DIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
8MB
(1) 1M x 64
None
None
None
16MB
(1) 2M x 64
None
None
None
16MB
(1) 1M x 64
(1) 1M x 64
None
None
24MB
(1) 2M x 64
(1) 1M x 64
None
None
24MB
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
None
32MB
(1) 4M x 64
None
None
None

DIMM CONFIGURATION (CON'T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
32MB
(1) 2M x 64
(1) 2M x 64
None
None
32MB
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
40MB
(1) 4M x 64
(1) 1M x 64
None
None
48MB
(1) 4M x 64
(1) 2M x 64
None
None
48MB
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
None
64MB
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
64MB
(1) 8M x 64
None
None
None
64MB
(1) 4M x 64
(1) 4M x 64
None
None
72MB
(1) 8M x 64
(1) 1M x 64
None
None
80MB
(1) 8M x 64
(1) 2M x 64
None
None
96MB
(1) 8M x 64
(1) 4M x 64
None
None
96MB
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
None
128MB
(1) 16M x 64
None
None
None
128MB
(1) 8M x 64
(1) 8M x 64
None
None
128MB
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
(1) 4M x 64
136MB
(1) 16M x 64
(1) 1M x 64
None
None
144MB
(1) 16M x 64
(1) 2M x 64
None
None
176MB
(1) 16M x 64
(1) 2M x 64
(1) 2M x 64
(1) 2M x 64
192MB
(1) 16M x 64
(1) 8M x 64
None
None
192MB
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
None
256MB
(1) 32M x 64
None
None
None
256MB
(1) 16M x 64
(1) 16M x 64
None
None
256MB
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
272MB
(1) 16M x 64
(1) 16M x 64
(1) 1M x 64
(1) 1M x 64
280MB
(1) 32M x 64
(1) 1M x 64
(1) 1M x 64
(1) 1M x 64
288MB
(1) 16M x 64
(1) 16M x 64
(1) 2M x 64
(1) 2M x 64
320MB
(1) 16M x 64
(1) 16M x 64
(1) 4M x 64
(1) 4M x 64
384MB
(1) 16M x 64
(1) 16M x 64
(1) 16M x 64
None
448MB
(1) 32M x 64
(1) 8M x 64
(1) 8M x 64
(1) 8M x 64
512MB
(1) 64M x 64
None
None
None
512MB
(1) 32M x 64
(1) 32M x 64
None
None
512MB
(1) 16M x 64
(1) 16M x 64
(1) 16M x 64
(1) 16M x 64
640MB
(1) 32M x 64
(1) 16M x 64
(1) 16M x 64
(1) 16M x 64
768MB
(1) 32M x 64
(1) 32M x 64
(1) 32M x 64
None
1024MB
(1) 64M x 64
(1) 64M x 64
None
None
1024MB
(1) 32M x 64
(1) 32M x 64
(1) 32M x 64
(1) 32M x 64
1536MB
(1) 64M x 64
(1) 64M x 64
(1) 64M x 64
None
2048MB
(1) 64M x 64
(1) 64M x 64
(1) 64M x 64
(1) 64M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
JP11
JP12
JP13
JP14
350MHz
100MHz
3.5x
Closed
Open
Open
Closed
400MHz
100MHz
4x
Open
Closed
Closed
Closed
450MHz
100MHz
4.5x
Open
Closed
Open
Closed
500MHz
100MHz
5x
Open
Open
Closed
Closed
