AI5TV (VER. 2.2) Motherboard Settings and Configuration

TMC RESEARCH CORPORATION

AI5TV (VER. 2.2)

Processor
CX 6X86/CX 6X86L/CX 6X86MX/AM K5/AM K6/Pentium
Processor Speed
75/90/100/120/133/150/166/200/233MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
128MB (EDO supported)
Maximum Video Memory
None
Cache
512KB
BIOS
Award
Dimensions
254mm x 218mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2)
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
Serial port 1
J5
Chassis fan power
J13
Serial port 2
J6
IR connector
J14
Parallel port
J7
Speaker
J15/pins 1 & 4
PS/2 mouse interface
J8
Green PC connector
J15/pins 6 & 16
USB connector
J9
Turbo LED
J15/pins 8 & 18
USB connector
J9A
Reset switch
J15/pins 9 & 19
IDE interface 1
J10
IDE interface LED
J15/pins 10 & 20
IDE interface 2
J11
Power LED & keylock
J15/pins 11 & 15
Floppy drive interface
J12
32-bit PCI slots
PC1 – PC4

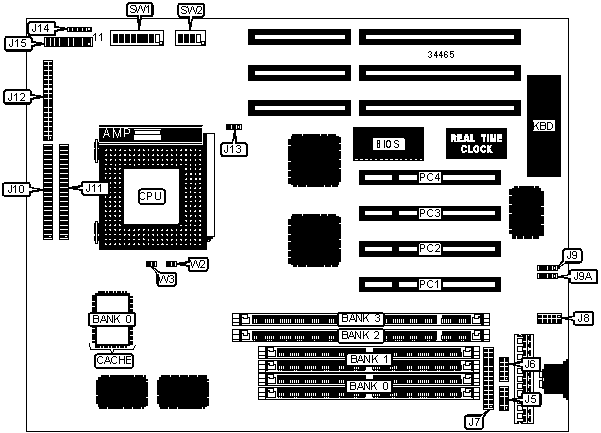

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
SW1/7
Off

CMOS memory clear
SW1/7
On
»
Factory configured - do not alter
SW1/8
Unidentified

DRAM CONFIGURATION
Size
Bank 0
Bank 1
8MB
(2) 1M x 36
None
16MB
(2) 2M x 36
None
16MB
(2) 1M x 36
(2) 1M x 36
24MB
(2) 2M x 36
(2) 1M x 36
32MB
(2) 4M x 36
None
32MB
(2) 2M x 36
(2) 2M x 36
40MB
(2) 4M x 36
(2) 1M x 36
48MB
(2) 4M x 36
(2) 2M x 36
64MB
(2) 8M x 36
None
64MB
(2) 4M x 36
(2) 4M x 36
72MB
(2) 8M x 36
(2) 1M x 36
80MB
(2) 8M x 36
(2) 2M x 36
96MB
(2) 8M x 36
(2) 4M x 36
128MB
(2) 8M x 36
(2) 8M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 2
Bank 3
8MB
(1) 1M x 64
None
16MB
(1) 2M x 64
None
16MB
(1) 1M x 64
(1) 1M x 64
24MB
(1) 2M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
32MB
(1) 2M x 64
(1) 2M x 64
40MB
(1) 4M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
64MB
(1) 4M x 64
(1) 4M x 64

CACHE CONFIGURATION
Size
Bank 0
512KB
(1) 64K x 64

CPU SPEED SELECTION (CX 8X86/X86L)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
120MHz
50MHz
2x
On
On
On
Off
On
Off
133MHz
55MHz
2x
On
On
Off
Off
On
Off
150MHz
60MHz
2x
Off
On
On
Off
On
Off
166MHz
66MHz
2x
On
Off
On
Off
On
Off

CPU SPEED SELECTION (CX 6X86MX)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
66MHz
2.5x
On
Off
On
Off
On
On
200MHz
66MHz
2.5x
On
Off
On
Off
On
On
233MHz
66MHz
3x
On
Off
On
Off
Off
On

CPU SPEED SELECTION (AM K5)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
On
On
On
Off
Off
Off
90MHz
60MHz
1.5x
Off
On
On
Off
Off
Off
100MHz
66MHz
1.5x
On
Off
On
Off
Off
Off
120MHz
60MHz
1.5x
Off
On
On
Off
On
Off
133MHz
66MHz
1.5x
On
Off
On
Off
On
Off
150MHz
60MHz
1.75x
Off
On
On
Off
On
Off
166MHz
66MHz
1.75x
On
Off
On
On
Off
Off

CPU SPEED SELECTION (AM K6)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
166MHz
66MHz
1.75x
On
Off
On
On
Off
Off
200MHz
66MHz
3x
On
Off
On
Off
Off
On
233MHz
66MHz
3.5x
On
Off
On
Off
Off
Off

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
On
On
On
Off
Off
Off
90MHz
60MHz
1.5x
Off
On
On
Off
Off
Off
100MHz
66MHz
1.5x
On
Off
On
Off
Off
Off
120MHz
60MHz
2x
Off
On
On
Off
On
Off
133MHz
66MHz
2x
On
Off
On
Off
On
Off
150MHz
60MHz
2.5x
Off
On
On
Off
On
On
166MHz
66MHz
2.5x
On
Off
On
Off
On
On
200MHz
66MHz
3x
On
Off
On
Off
Off
On
233MHz
66MHz
3.5x
On
Off
On
Off
Off
Off

CPU VOLTAGE SELECTION (SINGLE)
Voltage
SW2/1
SW2/2
SW/3
SW/4
W2
W3
3.5v
On
On
On
On
Closed
Open

CPU VOLTAGE SELECTION (DUAL)
Voltage
V core
SW2/1
SW2/2
SW/3
SW/4
W2
W3
3.3v
2.0v
Off
Off
Off
Off
Open
Closed
3.3v
2.6v
Off
On
On
Off
Open
Closed
3.3v
2.7v
On
On
On
Off
Open
Closed
3.3v
2.8v
Off
Off
Off
On
Open
Closed
3.3v
2.9v
On
Off
Off
On
Open
Closed
3.3v
3.0v
Off
On
Off
On
Open
Closed
3.3v
3.1v
On
On
Off
On
Open
Closed
3.3v
3.2v
Off
Off
On
On
Open
Closed
3.3v
3.5v
On
On
On
On
Open
Closed
