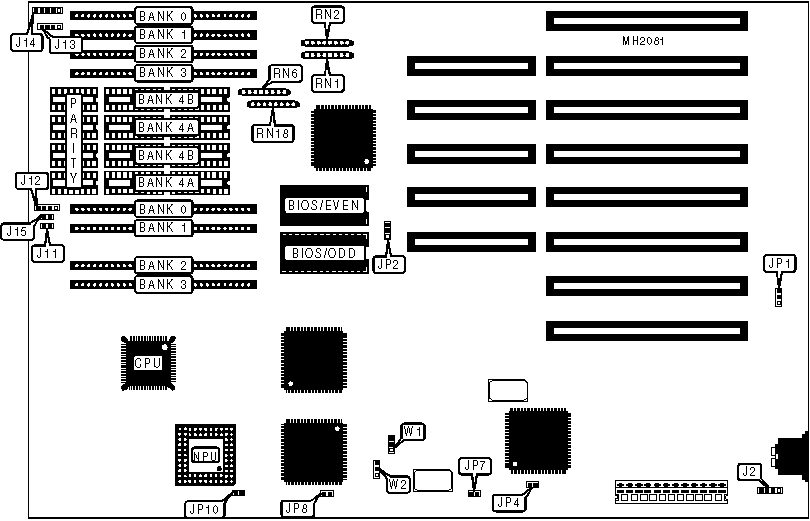

PAT3XCA Motherboard Settings and Configuration

TMC RESEARCH CORPORATION

PAT3XCA

Processor
80386SX
Processor Speed
16MHz
Chip Set
NEAT
Max. Onboard DRAM
8MB
Cache
None
BIOS
Unidentified
Dimensions
330mm x 215mm
I/O Options
None
NPU Options
80387SX

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J2
Speaker
J13
Reset switch
J11
Power LED & keylock
J14
Turbo LED
J12
Turbo switch
J15

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
Battery type select internal
JP1
pins 1 & 2 closed

Battery type select external
JP1
Open
»
BIOS type select 27256
JP2
pins 2 & 3 closed

BIOS type select 27128
JP2
pins 1 & 2 closed
»
Monitor type select color
JP4
Closed

Monitor type select monochrome
JP4
Open
»
NPU disabled
JP7
Closed

NPU enabled
JP7
Open
»
Pipeline mode enabled
JP8
Closed

Pipeline mode disabled
JP8
Open
»
Factory configured - do not alter
JP10
N/A
»
Factory configured - do not alter
W1
N/A
»
Factory configured - do not alter
W2
N/A

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
Bank 4A
Bank 4B
PARITY
512KB
(2) 256K x 9
NONE
NONE
NONE
NONE
NONE
NONE
512KB
NONE
NONE
NONE
NONE
(4) 44256
NONE
(2) 41256
1MB
(2) 256K x 9
(2) 256K x 9
NONE
NONE
NONE
NONE
NONE
1MB
(2) 256K x 9
NONE
NONE
NONE
(4) 44256
NONE
(2) 41256
1MB
NONE
NONE
(2) 256K x 9
NONE
(4) 44256
NONE
(2) 41256
1MB
NONE
NONE
NONE
NONE
(4) 44256
(4) 44256
(4) 41256
2MB
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
(2) 256K x 9
NONE
NONE
NONE
2MB
(2) 1M x 9
NONE
NONE
NONE
NONE
NONE
NONE
2MB
(2) 256K x 9
(2) 256K x 9
NONE
NONE
(4) 44256
(4) 44256
(4) 41256
2MB
NONE
NONE
(2) 256K x 9
(2) 256K x 9
(4) 44256
(4) 44256
(4) 41256
3MB
(2) 1M x 9
NONE
NONE
NONE
(4) 44256
(4) 44256
(4) 41256
3MB
NONE
NONE
(2) 1M x 9
NONE
(4) 44256
(4) 44256
(4) 41256
4MB
(2) 1M x 9
(2) 1M x 9
NONE
NONE
NONE
NONE
NONE
5MB
(2) 256K x 9
(2) 256K x 9
(2) 1M x 9
(2) 1M x 9
NONE
NONE
NONE
5MB
(2) 1M x 9
(2) 1M x 9
NONE
NONE
(4) 44256
(4) 44256
(4) 41256
5MB
NONE
NONE
(2) 1M x 9
(2) 1M x 9
(4) 44256
(4) 44256
(4) 41256
6MB
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
NONE
NONE
NONE
NONE
7MB
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
NONE
(4) 44256
(4) 44256
(4) 41256
8MB
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
(2) 1M x 9
NONE
NONE
NONE
Note: In configurations in which only one of banks 0 and 1 or 2 and 3 are installed, memory will not be interleaved and will operate with wait states.
