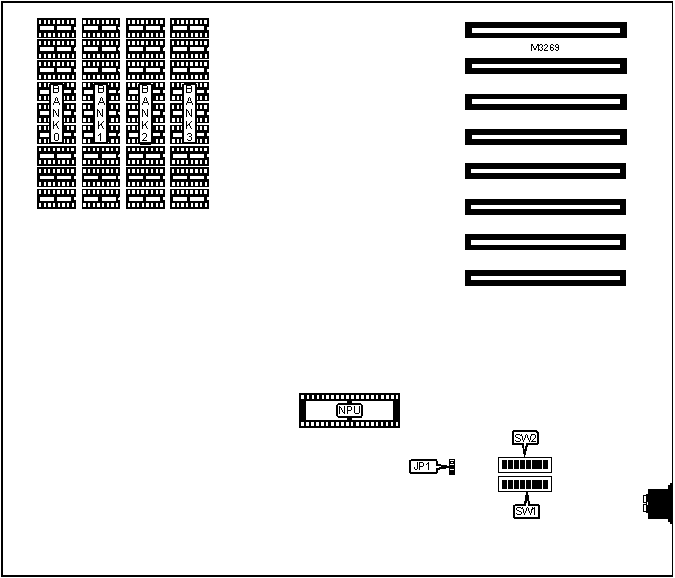

945 WORKSTATION Motherboard Settings and Configuration

Processor	8088
Processor Speed	4.77/8MHz
Chip Set	Unidentified
Max. Onboard DRAM	640KB
Cache	None
BIOS	Unidentified
Dimensions	355mm x 305mm
I/O Options	None
NPU Options	8087

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
	CPU speed select high	JP1	Pins 1 & 2 closed
	CPU speed select normal	JP1	Pins 2 & 3 closed
»	Floppy drives enabled	SW1/1	Off
	Floppy drives disabled	SW1/1	On
»	NPU disabled	SW1/2	On
	NPU enabled	SW1/2	Off
»	Factory configured - do not alter	SW2/1	On
»	Factory configured - do not alter	SW2/2	On
»	Factory configured - do not alter	SW2/3	On
»	Factory configured - do not alter	SW2/4	On
»	Factory configured - do not alter	SW2/5	On
»	Serial port enabled	SW2/7	On
	Serial port disabled	SW2/7	Off
»	Parallel port enabled	SW2/8	On
	Parallel port disabled	SW2/8	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
64KB	(9) 4164	None	None	None
128KB	(9) 4164	(9) 4164	None	None
192KB	(9) 4164	(9) 4164	(9) 4164	None
256KB (A)	(9) 4164	(9) 4164	(9) 4164	(9) 4164
256KB (B)	(9) 41256	None	None	None
512KB	(9) 41256	(9) 41256	None	None
576KB	(9) 41256	(9) 41256	(9) 4164	None
640KB	(9) 41256	(9) 41256	(9) 4164	(9) 4164

DRAM SWITCH CONFIGURATION
Size	SW1/3	SW1/4	SW2/6
64KB	On	On	Off
128KB	Off	On	Off
192KB	On	Off	Off
256KB (A)	Off	Off	Off
256KB (B)	On	On	On
512KB	Off	On	On
576KB	On	Off	On
640KB	Off	Off	On

VIDEO CONFIGURATION
Setting	SW1/5	SW1/6
None installed	On	On
Monochrome	Off	Off
Color 40	Off	On
Color 80	On	Off

FLOPPY DRIVE CONFIGURATION
Drives installed	SW1/7	SW1/8
1	On	On
2	Off	Off
