4820ST/T (250-5140) Motherboard Settings and Configuration

TANDY/RADIO SHACK

4820ST/T (250-5140)

Processor
80486SX/80487SX/ODP486/ODPR486/80486DX/80486DX2
Processor Speed
20/25/33/40/50(internal)/50/66(internal)MHz
Chip Set
Unidentified
Video Chip Set
None
Maximum Onboard Memory
64MB
Maximum Video Memory
None
Cache
None
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2)
NPU Options
80487SX

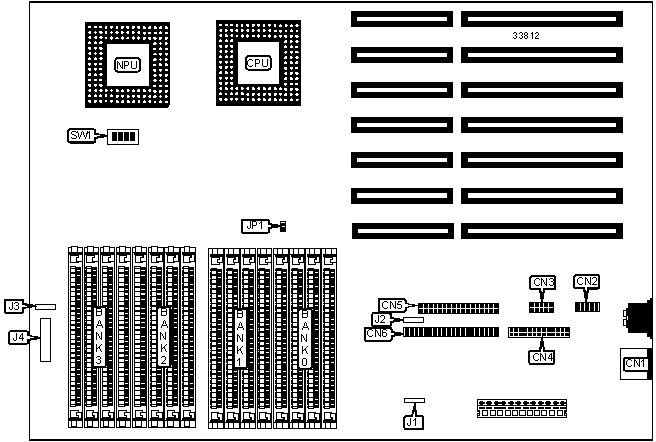

CONNECTIONS
Purpose
Location
Purpose
Location
PS/2 mouse port
CN1
IDE interface
CN6
Serial port 1
CN2
Power indicator
J1
Serial port 2
CN3
IDE interface LED
J2
Parallel port
CN4
External battery
J3
Floppy drive interface
CN5
Front panel connector
J4

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JP1
Open

CMOS memory clear
JP1
Closed
»
Monitor type select color
SW1/3
On

Monitor type select monochrome
SW1/3
Off
»
Factory configured - do not alter
SW1/4
Unidentified

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(4) 256K x 9
None
None
None
2MB
(4) 256K x 9
(4) 256K x 9
None
None
3MB
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
None
4MB
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
(4) 256K x 9
4MB
(4) 1M x 9
None
None
None
5MB
(4) 256K x 9
(4) 1M x 9
None
None
6MB
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
None
8MB
(4) 1M x 9
(4) 1M x 9
None
None
9MB
(4) 1M x 9
(4) 1M x 9
(4) 256K x 9
None
10MB
(4) 256K x 9
(4) 256K x 9
(4) 1M x 9
(4) 1M x 9
12MB
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
None
16MB
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
(4) 1M x 9
16MB
(4) 4M x 9
None
None
None
17MB
(4) 256K x 9
(4) 4M x 9
None
None
18MB
(4) 256K x 9
(4) 256K x 9
(4) 4M x 9
None
20MB
(4) 1M x 9
(4) 4M x 9
None
None
24MB
(4) 1M x 9
(4) 1M x 9
(4) 4M x 9
None
32MB
(4) 4M x 9
(4) 4M x 9
None
None
33MB
(4) 4M x 9
(4) 4M x 9
(4) 256K x 9
None
34MB
(4) 256K x 9
(4) 256K x 9
(4) 4M x 9
(4) 4M x 9
36MB
(4) 4M x 9
(4) 4M x 9
(4) 1M x 9
None
40MB
(4) 1M x 9
(4) 1M x 9
(4) 4M x 9
(4) 4M x 9
48MB
(4) 4M x 9
(4) 4M x 9
(4) 4M x 9
None
64MB
(4) 4M x 9
(4) 4M x 9
(4) 4M x 9
(4) 4M x 9

CPU TYPE SELECTION
Type
Socket
SW1/1
SW1/2
80486SX
CPU
Off
Off
ODP486
CPU
On
On
ODP486
NPU
Off
Off
ODPR486
CPU
On
Off
80487SX
CPU
On
On
80487SX
NPU
Off
Off
80486DX
CPU
On
Off
80486DX2
CPU
On
Off
