4100 MT Motherboard Settings and Configuration

TANDY/RADIO SHACK

4100 MT

Processor
80486SX/ODP486SX/80487SX/80486DX/80486DX2/ODP486DX2
Processor Speed
25/33/50(internal)/66(internal)MHz
Chip Set
Unidentified
Video Chip Set
ATI
Maximum Onboard Memory
64MB
Maximum Video Memory
2MB
Cache
64/256KB
BIOS
Unidentified
Dimensions
330mm x 218mm
I/O Options
Floppy drive interface, IDE interface, VGA feature connector
NPU Options
None

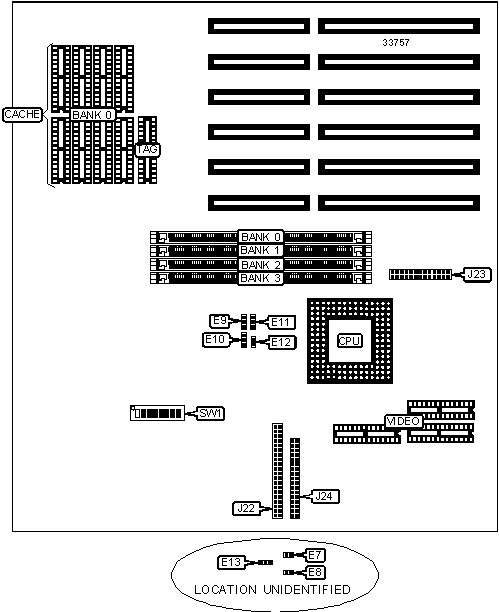

CONNECTIONS
Purpose
Location
Purpose
Location
IDE interface
J22
Floppy drive interface
J24
VGA feature connector
J23

USER CONFIGURABLE SETTINGS
Function
Label
Position

On board video enabled
SW1/1
Off

On board video disabled
SW1/1
On
»
Factory configured - do not alter
SW1/2
Off
»
Factory configured - do not alter
SW1/3
Off

Password enabled
SW1/4
Off

Password disabled
SW1/4
On

Monitor type select color
SW1/5
On

Monitor type select monochrome
SW1/5
Off
»
Factory configured - do not alter
SW1/6
Off
»
Factory configured - do not alter
SW1/7
Off

Setup access enabled
SW1/8
Off

Setup access disabled
SW1/8
On

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(1) 256K x 36
None
None
None
2MB
(1) 256K x 36
(1) 256K x 36
None
None
3MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
None
4MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
4MB
(1) 1M x 36
None
None
None
5MB
(1) 1M x 36
(1) 256K x 36
None
None
6MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
None
7MB
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
8MB
(1) 1M x 36
(1) 1M x 36
None
None
9MB
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36
None
10MB
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
12MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
None
13MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
16MB
(1) 4M x 36
None
None
None
17MB
(1) 4M x 36
(1) 256K x 36
None
None
18MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
None
19MB
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
21MB
(1) 4M x 36
(1) 1M x 36
(1) 256K x 36
None
22MB
(1) 4M x 36
(1) 1M x 36
(1) 256K x 36
(1) 256K x 36
24MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
None
25MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
(1) 256K x 36

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
28MB
(1) 4M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
32MB
(1) 4M x 36
(1) 4M x 36
None
None
33MB
(1) 4M x 36
(1) 4M x 36
(1) 256K x 36
None
34MB
(1) 4M x 36
(1) 4M x 36
(1) 256K x 36
(1) 256K x 36
36MB
(1) 4M x 36
(1) 4M x 36
(1) 1M x 36
None
37MB
(1) 4M x 36
(1) 4M x 36
(1) 1M x 36
(1) 256K x 36
48MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
None
49MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 256K x 36
52MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 1M x 36
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36

CACHE CONFIGURATION
Size
Bank 0
TAG
64KB
(8) 8K x 8
(1) 8K x 8
256KB
(8) 32K x 8
(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size
E7
E8
64KB
Open
Open
256KB
Closed
Closed

VIDEO MEMORY CONFIGURATION
Note: Board accepts 512KB/2MB of video memory. The size of the chips are unidentified. The number of banks is unidentified.

CPU TYPE SELECTION
Type
E9
E10
E11
E12
E13
80486SX
Open
2 & 3
1 & 2
Open
2 & 3
ODP486SX
1 & 2
1 & 2
2 & 3
Closed
2 & 3
80487SX
1 & 2
1 & 2
2 & 3
Closed
2 & 3
80486DX
2 & 3
1 & 2
1 & 2
Closed
2 & 3
80486DX2
2 & 3
1 & 2
1 & 2
Closed
2 & 3
ODP486DX2
1 & 2
1 & 2
2 & 3
Closed
1 & 2
Note: Pins designated should be in the closed position.
