P6DNH, P6DNH2 Motherboard Settings and Configuration

SUPER MICRO

P6DNH, P6DNH2

Processor
Pentium Pro
Processor Speed
150/166/180/200MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
1GB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB (located on Pentium Pro CPU)
BIOS
AMI
Dimensions
355mm x 304mm
I/O Options
32-bit PCI slots (8), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, VRM connectors (2), USB connectors (2)
NPU Options
None

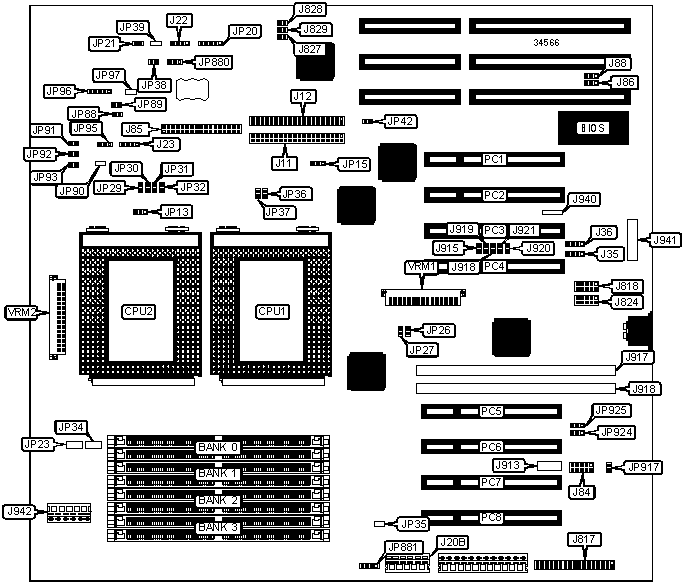

CONNECTIONS
Purpose
Location
Purpose
Location
IDE interface 1
J11
Power LED & keylock
JP20
IDE interface 2
J12
Reset switch
JP21
5v auxiliary power
J20B
Green PC connector
JP39
Speaker
J22
Buzzer
JP89
IDE interface LED
J23
Overheat LED
JP90
USB connector 1
J35
Backup cooling fan power
JP91
USB connector 2
J36
Backup cooling fan power
JP92
PS/2 mouse interface
J84
Backup cooling fan power
JP93
Floppy drive interface
J85
IR connector
JP96
Parallel port
J817
External battery
JP881
Serial port 1
J818
32-bit PCI slots
PC1 – PC8
Serial port 2
J824
VRM connector
VRM1
3.3v auxiliary power
J942
VRM connector
VRM2

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
J86
Pins 1 & 2 closed
»
Factory configured - do not alter
J88
Pins 1 & 2 closed
»
Factory configured - do not alter
J827
Closed
»
Factory configured - do not alter
J828
Closed
»
Factory configured - do not alter
J829
Closed
»
Factory configured - do not alter
J913
Unidentified
»
Factory configured - do not alter
J917
Unidentified
»
Factory configured - do not alter
J918
Unidentified
»
Factory configured - do not alter
J940
Unidentified
»
Factory configured - do not alter
J941
Unidentified
»
Factory configured - do not alter
JP13
Pins 2 & 3 closed
»
Factory configured - do not alter
JP15
Pins 2 & 3 closed
»
Factory configured - do not alter
JP23
Unidentified
»
Factory configured - do not alter
JP26
Open
»
Factory configured - do not alter
JP27
Closed
»
Factory configured - do not alter
JP34
Unidentified
»
Factory configured - do not alter
JP35
Unidentified
»
Factory configured - do not alter
JP38
Open

ISA CLK = PCI CLK/4
JP42
Closed

ISA CLK = PCI CLK/3
JP42
Open

Buzzer control select standby
JP88
Closed

Buzzer control select disabled
JP88
Open
»
Factory configured - do not alter
JP97
Unidentified
»
CMOS memory normal operation
JP880
Pins 1 & 2 closed

CMOS memory clear
JP880
Pins 2 & 3 closed
»
Factory configured - do not alter
JP917
Closed
»
Factory configured - do not alter
JP924
Pins 1 & 2 closed
»
Factory configured - do not alter
JP925
Pins 1 & 2 closed

SIMM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
8MB
(2) 1M x 36
None
None
None
16MB
(2) 2M x 36
None
None
None
16MB
(2) 1M x 36
(2) 1M x 36
None
None
24MB
(2) 2M x 36
(2) 1M x 36
None
None
24MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
None
32MB
(2) 4M x 36
None
None
None
32MB
(2) 2M x 36
(2) 2M x 36
None
None
32MB
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
(2) 1M x 36
40MB
(2) 4M x 36
(2) 1M x 36
None
None
48MB
(2) 4M x 36
(2) 2M x 36
None
None
48MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
None
64MB
(2) 8M x 36
None
None
None
64MB
(2) 4M x 36
(2) 4M x 36
None
None
64MB
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
(2) 2M x 36
72MB
(2) 8M x 36
(2) 1M x 36
None
None
80MB
(2) 8M x 36
(2) 2M x 36
None
None
96MB
(2) 8M x 36
(2) 4M x 36
None
None
96MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
None
128MB
(2) 8M x 36
(2) 8M x 36
None
None
128MB
(2) 16M x 36
None
None
None
128MB
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
(2) 4M x 36
136MB
(2) 16M x 36
(2) 1M x 36
None
None
144MB
(2) 16M x 36
(2) 2M x 36
None
None
160MB
(2) 16M x 36
(2) 4M x 36
None
None
192MB
(2) 16M x 36
(2) 8M x 36
None
None
192MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
None
256MB
(2) 16M x 36
(2) 16M x 36
None
None
256MB
(2) 32M x 36
None
None
None
256MB
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
(2) 8M x 36
264MB
(2) 32M x 36
(2) 1M x 36
None
None
272MB
(2) 32M x 36
(2) 2M x 36
None
None
288MB
(2) 32M x 36
(2) 4M x 36
None
None
320MB
(2) 32M x 36
(2) 8M x 36
None
None
384MB
(2) 32M x 36
(2) 16M x 36
None
None
384MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
None
512MB
(2) 32M x 36
(2) 32M x 36
None
None
512MB
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
(2) 16M x 36
768MB
(2) 32M x 36
(2) 32M x 36
(2) 32M x 36
None
1GB
(2) 32M x 36
(2) 32M x 36
(2) 32M x 36
(2) 32M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION
Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
CPU speed
JP29
JP30
JP31
JP32
JP36
JP37
150MHz
Open
Closed
Closed
Closed
Closed
Open
166MHz
Open
Closed
Closed
Closed
Open
Closed
180MHz
Closed
Open
Closed
Closed
Closed
Open
200MHz
Closed
Open
Closed
Closed
Open
Closed

I960 SELECTION
Setting
J915
J918
J919
J920
J921
»
Mode 0
Open
Closed
Closed
Open
Closed

Mode 3
Open
Open
Open
Open
Closed

THERMAL CONTROL SELECTION
Turn on
Turn off
JP95
55C
51C
Pins 1 & 2 closed
62C
58C
Pins 2 & 3 closed
69C
65C
Open
Note: Depending on temperature selected, a backup fan or alarm will sound, letting user know the system is overheating.
