P5VL-PCI Motherboard Settings and Configuration

SUPER MICRO

P5VL-PCI

Processor
Pentium
Processor Speed
60/66MHz
Chip Set
OPTI
Max. Onboard DRAM
128MB
Cache
128/256/512KB
BIOS
AMI
Dimensions
330mm x 218mm
I/O Options
32-bit PCI bus slots (4), 32-bit VESA local bus slots (2), green PC connector
NPU Options
None

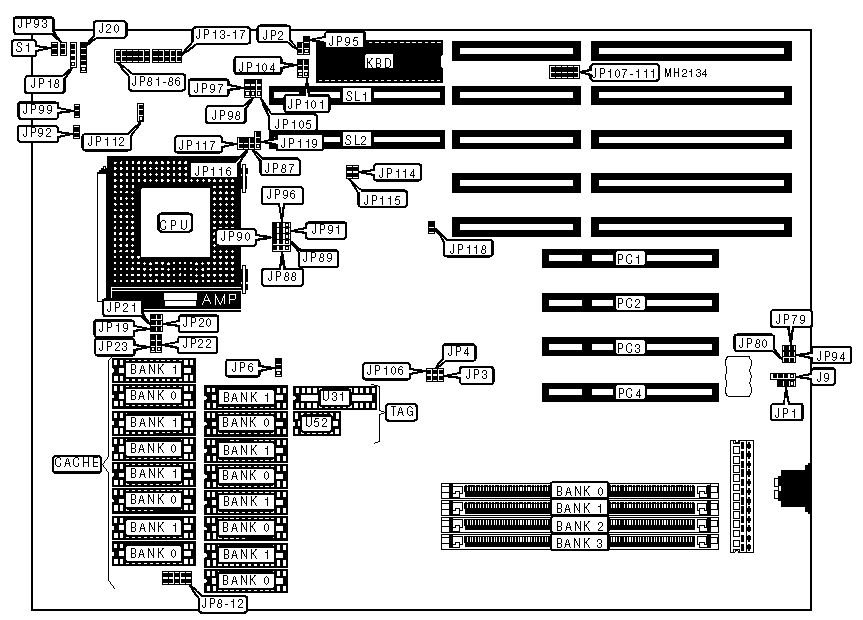

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J9
Green PC connector (power supply)
JP94
Power LED & keylock
J20
Turbo LED
JP99
Speaker
JP18
32-bit PCI bus slots
PC1 - PC4
Green PC connector (peripheral)
JP79
Reset switch
S1
Green PC connector (peripheral)
JP80
32-bit VESA local bus slots
SL1 & SL2
Turbo switch
JP92

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
CMOS memory normal operation
JP1
pins 2 & 3 closed

CMOS memory clear
JP1
pins 1 & 2 closed
»
Factory configured - do not alter
JP2
Open
»
Factory configured - do not alter
JP3
Open
»
Factory configured - do not alter
JP4
Closed
»
Factory configured - do not alter
JP8
Open
»
Factory configured - do not alter
JP9
Closed
»
Factory configured - do not alter
JP10
Closed
»
Factory configured - do not alter
JP11
Open
»
Factory configured - do not alter
JP12
Open
»
Factory configured - do not alter
JP13
Open
»
Factory configured - do not alter
JP14
Open
»
Factory configured - do not alter
JP15
Closed
»
Factory configured - do not alter
JP16
Closed
»
Factory configured - do not alter
JP17
Closed
»
Factory configured - do not alter
JP77
Open
»
Factory configured - do not alter
JP81
Open
»
Factory configured - do not alter
JP82
Closed
»
Factory configured - do not alter
JP83
Closed
»
Factory configured - do not alter
JP84
Open
»
Factory configured - do not alter
JP85
Closed
»
Factory configured - do not alter
JP86
Open
»
Factory configured - do not alter
JP87
Open
»
Factory configured - do not alter
JP88
pins 1 & 2 closed
»
Factory configured - do not alter
JP89
pins 1 & 2 closed
»
Factory configured - do not alter
JP90
pins 1 & 2 closed
»
Factory configured - do not alter
JP91
pins 2 & 3 closed
»
Factory configured - do not alter
JP93
Open
»
Factory configured - do not alter
JP95
pins 2 & 3 closed
»
Factory configured - do not alter
JP96
pins 2 & 3 closed
»
Factory configured - do not alter
JP97
pins 1 & 2 closed
»
Factory configured - do not alter
JP98
pins 1 & 2 closed
»
Factory configured - do not alter
JP101
pins 1 & 2 closed
»
Factory configured - do not alter
JP104
pins 1 & 2 closed
»
Factory configured - do not alter
JP105
pins 1 & 2 closed
»
Factory configured - do not alter
JP106
Open
»
Factory configured - do not alter
JP114
Open
»
Factory configured - do not alter
JP115
Open
»
Factory configured - do not alter
JP116
Open
»
Factory configured - do not alter
JP117
Open
»
Factory configured - do not alter
JP118
Open
»
Factory configured - do not alter
JP119
pins 2 & 3 closed
Note: The location of JP77 is unidentified.

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
2MB
(1) 256K x 36
(1) 256K x 36
NONE
NONE
4MB
(1) 512K x 36
(1) 512K x 36
NONE
NONE
4MB
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
(1) 256K x 36
6MB
(1) 256K x 36
(1) 256K x 36
(1) 512K x 36
(1) 512K x 36
8MB
(1) 1M x 36
(1) 1M x 36
NONE
NONE
8MB
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
(1) 512K x 36
10MB
(1) 256K x 36
(1) 256K x 36
(1) 1M x 36
(1) 1M x 36
12MB
(1) 512K x 36
(1) 512K x 36
(1) 1M x 36
(1) 1M x 36
16MB
(1) 2M x 36
(1) 2M x 36
NONE
NONE
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
18MB
(1) 256K x 36
(1) 256K x 36
(1) 2M x 36
(1) 2M x 36
20MB
(1) 512K x 36
(1) 512K x 36
(1) 2M x 36
(1) 2M x 36
24MB
(1) 1M x 36
(1) 1M x 36
(1) 2M x 36
(1) 2M x 36
32MB
(1) 4M x 36
(1) 4M x 36
NONE
NONE
32MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
34MB
(1) 256K x 36
(1) 256K x 36
(1) 4M x 36
(1) 4M x 36
36MB
(1) 512K x 36
(1) 512K x 36
(1) 4M x 36
(1) 4M x 36
40MB
(1) 1M x 36
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
48MB
(1) 2M x 36
(1) 2M x 36
(1) 4M x 36
(1) 4M x 36
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
64MB
(1) 8M x 36
(1) 8M x 36
NONE
NONE
66MB
(1) 256K x 36
(1) 256K x 36
(1) 8M x 36
(1) 8M x 36
68MB
(1) 512K x 36
(1) 512K x 36
(1) 8M x 36
(1) 8M x 36
72MB
(1) 1M x 36
(1) 1M x 36
(1) 8M x 36
(1) 8M x 36
80MB
(1) 2M x 36
(1) 2M x 36
(1) 8M x 36
(1) 8M x 36
96MB
(1) 4M x 36
(1) 4M x 36
(1) 8M x 36
(1) 8M x 36
128MB
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
TAG (U31)
Dirty bit (U52)
128KB
(8) 8K x 8
(8) 8K x 8
(1) 32K x 8
(1) 16K x 1
256KB
(8) 32K x 8
NONE
(1) 32K x 8
(1) 16K x 1
512KB
(8) 32K x 8
(8) 32K x 8
(1) 32K x 8
(1) 16K x 1

CACHE JUMPER CONFIGURATION
Size
JP6
JP19
JP20
JP21
JP22
JP23
128KB
2 & 3
Closed
Open
Open
2 & 3
2 & 3
256KB
1 & 2
Closed
Closed
Open
1 & 2
1 & 2
512KB
2 & 3
Closed
Closed
Closed
2 & 3
2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION
Speed
JP112
60MHz
pins 1 & 2 closed
66MHz
pins 2 & 3 closed

INTERRUPT CONFIGURATION
IRQ
JP107
JP108
JP109
IRQ3
Closed
Open
Open
IRQ4
Open
Closed
Open
IRQ9
Open
Open
Closed
Note: Only one jumper at a time can be closed in jumper block JP107-111.

VIDEO CARD CONFIGURATION
Video card
JP110
JP111
ISA
Closed
Open
Local bus
Open
Closed
Note: Only one jumper at a time can be closed in jumper block JP107-111.
